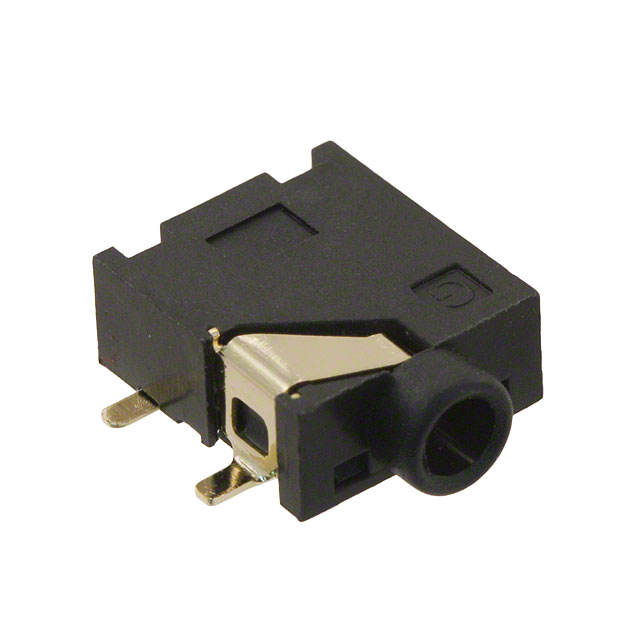

SJ1-2513-SMT-TR
ActiveCUI Devices
CONN 2.5MM AUDIO JACK RCP 3 POS SOLDER RA SMD 3 TERMINAL 1 PORT T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJ1-2513-SMT-TR
ActiveCUI Devices
CONN 2.5MM AUDIO JACK RCP 3 POS SOLDER RA SMD 3 TERMINAL 1 PORT T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SJ1-2513-SMT-TR |
|---|---|
| Actual Diameter [diameter] | 2.6 mm |
| Actual Diameter [diameter] | 0.102 in |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Brass, Beryllium Copper |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 1 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Industry Recognized Mating Diameter | 0.094 in |
| Industry Recognized Mating Diameter | 2.5 mm |
| Industry Recognized Mating Diameter | 3 /32" |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
SJ1-25 Series
| Part | Housing Material | Gender | Signal Lines | Contact Material - Plating [custom] | Current Rating (Amps) | Contact Material | Shielding | Voltage - Rated | Connector Type | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Actual Diameter [diameter] | Actual Diameter [diameter] | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Internal Switch(s) | Termination | Body Color | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Polyamide (PA6T) Nylon 6T | Female | Stereo | Gold | 1 A | Copper Alloy | Unshielded | 12 VDC | Phone Jack | 0.094 in | 2.5 mm | 3 /32" | 2.6 mm | 0.102 in | Surface Mount Right Angle | 3 | 5 | Board Guide | -25 °C | 85 °C | Two Switches | Solder | Black | |
CUI Devices | Polyamide (PA6T) Nylon 6T | Female | Stereo | Gold | 1 A | Copper Alloy | Unshielded | 12 VDC | Phone Jack | 0.094 in | 2.5 mm | 3 /32" | 2.6 mm | 0.102 in | Surface Mount Right Angle | 3 | 4 | Board Guide | -25 °C | 85 °C | Single Switch | Solder | Black | |
CUI Devices | Polyamide (PA6T) Nylon 6T | Female | Stereo | Gold | 1 A | Beryllium Copper Brass | Unshielded | 12 VDC | Phone Jack | 0.094 in | 2.5 mm | 3 /32" | 2.6 mm | 0.102 in | Surface Mount Right Angle | 3 | 3 | Board Guide | -25 °C | 85 °C | Solder | Black | ||
CUI Devices | Polyamide (PA6T) Nylon 6T | Female | Stereo | Gold | 1 A | Brass Copper Alloy | Unshielded | 12 VDC | Phone Jack | 0.094 in | 2.5 mm | 3 /32" | 2.6 mm | 0.102 in | Surface Mount Right Angle | 3 | 4 | Board Guide | -25 °C | 85 °C | Single Switch | Solder | Black | |
CUI Devices | Female | Stereo | Gold | 1 A | Brass Copper Alloy | Unshielded | 12 VDC | Phone Jack | 0.094 in | 2.5 mm | 3 /32" | 2.6 mm | 0.102 in | Surface Mount Right Angle | 3 | 4 | Board Guide | -25 °C | 85 °C | Single Switch | Solder | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.62 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.11 | |||
| 50 | $ 1.03 | |||
| 100 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.62 | ||
| 10 | $ 1.24 | |||
| 25 | $ 1.11 | |||
| 50 | $ 1.03 | |||
| 100 | $ 0.95 | |||
| Tape & Reel (TR) | 1000 | $ 0.74 | ||
Description
General part information
SJ1-25 Series
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
