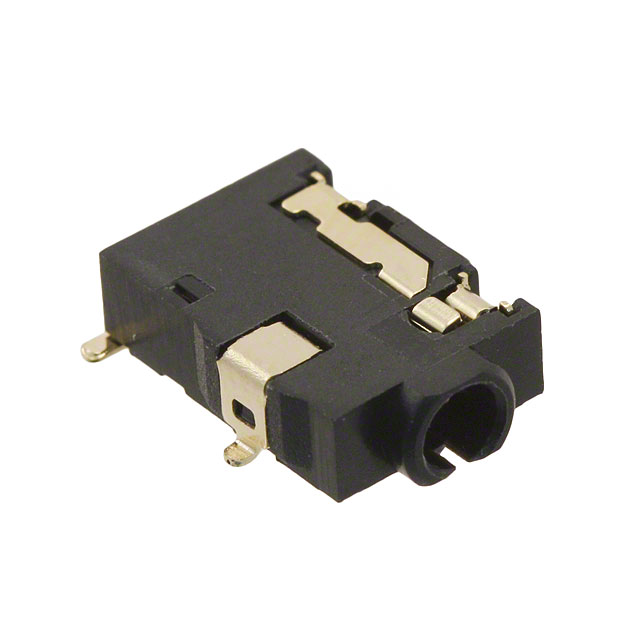

SJ1-2535-SMT-TR

Active

CUI Devices

CONN JACK STEREO 2.5MM SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SJ1-2535-SMT-TR

Active

CUI Devices

CONN JACK STEREO 2.5MM SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJ1-2535-SMT-TR

Actual Diameter [diameter]	2.6 mm
Actual Diameter [diameter]	0.102 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	1 A
Features	Board Guide
Gender	Female
Housing Material	Polyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter	0.094 in
Industry Recognized Mating Diameter	2.5 mm
Industry Recognized Mating Diameter	3 /32"
Internal Switch(s)	Two Switches
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	5
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	12 VDC

SJ1-25 Series

Part	Housing Material	Gender	Signal Lines	Contact Material - Plating [custom]	Current Rating (Amps)	Contact Material	Shielding	Voltage - Rated	Connector Type	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Actual Diameter [diameter]	Actual Diameter [diameter]	Mounting Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Internal Switch(s)	Termination	Body Color
CUI Devices SJ1-2535-SMT-TR	Polyamide (PA6T) Nylon 6T	Female	Stereo	Gold	1 A	Copper Alloy	Unshielded	12 VDC	Phone Jack	0.094 in	2.5 mm	3 /32"	2.6 mm	0.102 in	Surface Mount Right Angle	3	5	Board Guide	-25 °C	85 °C	Two Switches	Solder	Black
CUI Devices SJ1-2534-SMT-TR	Polyamide (PA6T) Nylon 6T	Female	Stereo	Gold	1 A	Copper Alloy	Unshielded	12 VDC	Phone Jack	0.094 in	2.5 mm	3 /32"	2.6 mm	0.102 in	Surface Mount Right Angle	3	4	Board Guide	-25 °C	85 °C	Single Switch	Solder	Black
CUI Devices SJ1-2513-SMT-TR	Polyamide (PA6T) Nylon 6T	Female	Stereo	Gold	1 A	Beryllium Copper Brass	Unshielded	12 VDC	Phone Jack	0.094 in	2.5 mm	3 /32"	2.6 mm	0.102 in	Surface Mount Right Angle	3	3	Board Guide	-25 °C	85 °C		Solder	Black
CUI Devices SJ1-2514-SMT-TR	Polyamide (PA6T) Nylon 6T	Female	Stereo	Gold	1 A	Brass Copper Alloy	Unshielded	12 VDC	Phone Jack	0.094 in	2.5 mm	3 /32"	2.6 mm	0.102 in	Surface Mount Right Angle	3	4	Board Guide	-25 °C	85 °C	Single Switch	Solder	Black
CUI Devices SJ1-2513C-SMT-TR		Female	Stereo	Gold	1 A	Brass Copper Alloy	Unshielded	12 VDC	Phone Jack	0.094 in	2.5 mm	3 /32"	2.6 mm	0.102 in	Surface Mount Right Angle	3	4	Board Guide	-25 °C	85 °C	Single Switch	Solder	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.03
		10	$ 0.87
		25	$ 0.83
		50	$ 0.81
		100	$ 0.78
		250	$ 0.71
		500	$ 0.64
	Digi-Reel®	1	$ 1.03
		10	$ 0.87
		25	$ 0.83
		50	$ 0.81
		100	$ 0.78
		250	$ 0.71
		500	$ 0.64
	Tape & Reel (TR)	1500	$ 0.62
		3000	$ 0.60
		7500	$ 0.58
		10500	$ 0.55
		15000	$ 0.54

Description

General part information

SJ1-25 Series

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
