WB24ED1100

Active

E-Switch

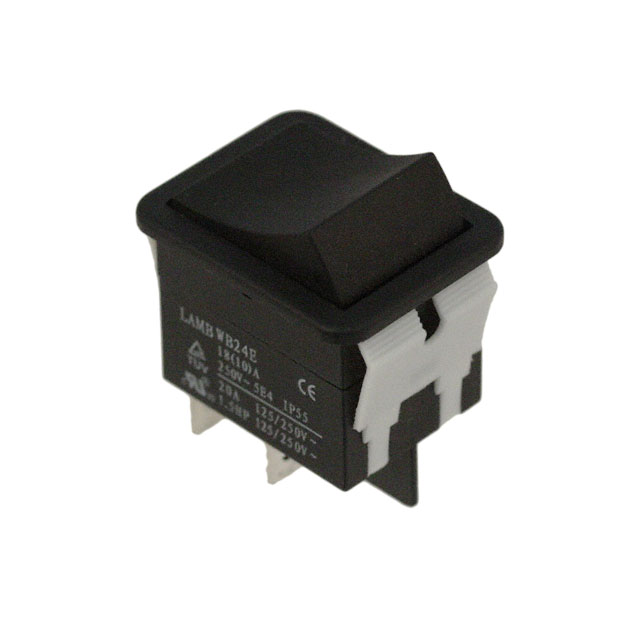

SWITCH ROCKER DPST-NO 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPST-NO 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	WB24ED1100

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	CE, TUV, cULus
Circuit	DPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Ingress Protection	IP55 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Actuator Type	Switch Function	Mounting Type	Voltage Rating - AC	Ingress Protection	Termination Style	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Actuator Marking	Color - Actuator/Cap	Approval Agency	Current Rating (Amps)
E-Switch WB24ED1121-ACC-KF05	Concave (Curved)	Off-Mom	Panel Mount Snap-In	125 V	IP55 - Dust Protected Water Resistant	Quick Connect - 0.250" (6.3mm)	Sealing Boot	30 mm	22 mm	DPST-NO	O -	Black	CE cULus TUV	20 A
E-Switch WB24ED1100-ACC-KF05	Concave (Curved)	Off-Mom	Panel Mount Snap-In	125 V	IP55 - Dust Protected Water Resistant	Quick Connect - 0.250" (6.3mm)	Sealing Boot	30 mm	22 mm	DPST-NO	No Marking	Black	CE cULus TUV	20 A
E-Switch WB24ED1100	Concave (Curved)	Off-Mom	Panel Mount Snap-In	125 V	IP55 - Dust Protected Water Resistant	Quick Connect - 0.250" (6.3mm)		30 mm	22 mm	DPST-NO	No Marking	Black	CE cULus TUV	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.38

General part information

Rocker Switch DPST-NO 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
