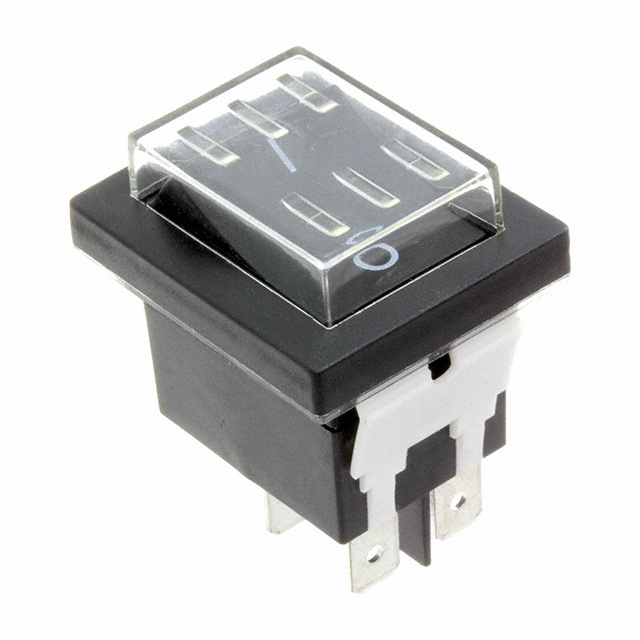

WB24ED1121-ACC-KF05
ActiveE-Switch
SWITCH ROCKER DPST-NO 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
WB24ED1121-ACC-KF05
ActiveE-Switch
SWITCH ROCKER DPST-NO 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WB24ED1121-ACC-KF05 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | CE, TUV, cULus |
| Circuit | DPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Features | Sealing Boot |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.48 | |
| 10 | $ 7.32 | |||
| 25 | $ 6.90 | |||
| 50 | $ 6.60 | |||
| 100 | $ 6.31 | |||
| 250 | $ 5.95 | |||
| 800 | $ 5.52 | |||
| 1600 | $ 5.28 | |||
Description
General part information
WB24ED1 Series
Rocker Switch DPST-NO 20A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
