189-037-613R691

Active

MH Connectors

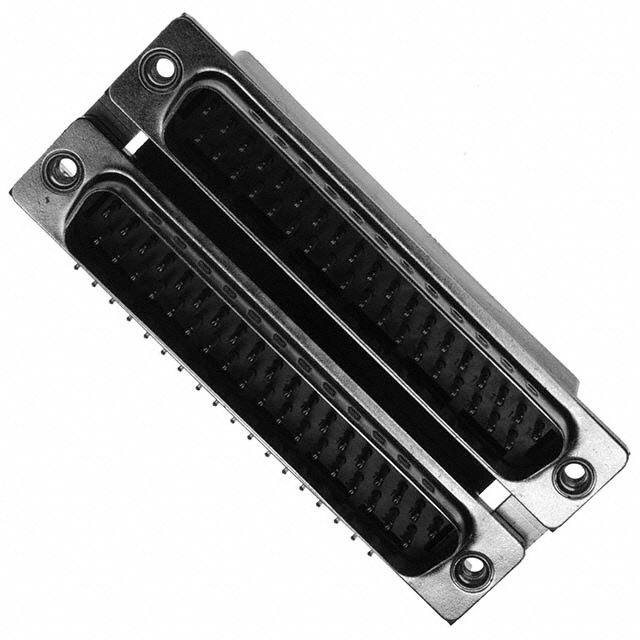

STACKED D SUB CONNECTOR, 189 SERIES, DC, PLUG, 37 CONTACTS, DC, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +2

189-037-613R691

Active

MH Connectors

STACKED D SUB CONNECTOR, 189 SERIES, DC, PLUG, 37 CONTACTS, DC, PLUG

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	189-037-613R691

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

189-037 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Material Flammability Rating	Contact Finish	Connector Type	Contact Type	Number of Positions	Features	Contact Material	Flange Feature	Shell Size, Connector Layout	Number of Rows	Color	Termination	Contact Finish Thickness	Dielectric Material	Current Rating (Amps)	Backset Spacing	Backset Spacing	Connector Style	Contact Form	Shell Material, Finish
MH Connectors 189-037-612-571	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Male Pins Plug	Signal	37	Board Lock Grounding Indents	Brass	Female Screwlock (4-40) Mating Side	4	2	Black	Solder	Flash	Polyester Glass Filled	5 A	8.08 mm	0.318 "	D-Sub - Stacked
MH Connectors 189-037-312-571	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Plug Male Pins Receptacle Female Sockets	Signal	37	Board Lock Grounding Indents		Female Screwlock (4-40) Mating Side	4	2	Black	Solder	Flash	Polyester Glass Filled	5 A	8.08 mm	0.318 "	D-Sub - Stacked
MH Connectors 189-037-413R691	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Plug Male Pins Receptacle Female Sockets	Signal	37	Board Lock Grounding Indents Shielded	Brass	Housing/Shell (4-40)	4	2	Black	Solder	Flash	Polyamide (PA9T) Nylon 9T	5 A	8.08 mm	0.318 "	D-Sub - Stacked	Stamped	Nickel Plated Steel
MH Connectors 189-037-413R571	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Plug Male Pins Receptacle Female Sockets	Signal	37	Board Lock Grounding Indents Shielded	Brass	Female Screwlock (4-40) Mating Side	4	2	Black	Solder	Flash	Polyamide (PA9T) Nylon 9T	5 A	8.08 mm	0.318 "	D-Sub - Stacked	Stamped	Nickel Plated Steel
MH Connectors 189-037-313R481	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Plug Male Pins Receptacle Female Sockets	Signal	37	Grounding Indents Shielded	Brass	Female Screwlock (4-40) Mating Side	4	2	Black	Solder	Flash	Polyamide (PA9T) Nylon 9T	5 A	8.08 mm	0.318 "	D-Sub - Stacked	Stamped	Nickel Plated Steel
MH Connectors 189-037-513R481	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Receptacle Female Sockets	Signal	37	Shielded	Brass	Female Screwlock (4-40) Mating Side	4	2	Black	Solder	Flash	Polyamide (PA9T) Nylon 9T	5 A	8.08 mm	0.318 "	D-Sub - Stacked	Stamped	Nickel Plated Steel
MH Connectors 189-037-613R691	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Male Pins Plug	Signal	37	Board Lock Grounding Indents Shielded	Brass	Housing/Shell (4-40)	4	2	Black	Solder	Flash	Polyamide (PA9T) Nylon 9T	5 A	8.08 mm	0.318 "	D-Sub - Stacked	Stamped	Nickel Plated Steel
MH Connectors 189-037-513R671	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Receptacle Female Sockets	Signal	37	Board Lock Shielded	Brass	Female Screwlock (4-40) Mating Side	4	2	Black	Solder	Flash	Polyamide (PA9T) Nylon 9T	5 A	8.08 mm	0.318 "	D-Sub - Stacked	Stamped	Nickel Plated Steel
MH Connectors 189-037-513R451	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Receptacle Female Sockets	Signal	37	Shielded	Brass	Housing/Shell (4-40)	4	2	Black	Solder	Flash	Polyamide (PA9T) Nylon 9T	5 A	8.08 mm	0.318 "	D-Sub - Stacked	Stamped	Nickel Plated Steel
MH Connectors 189-037-413R491	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	Plug Male Pins Receptacle Female Sockets	Signal	37	Board Lock Grounding Indents Shielded	Brass	Housing/Shell (4-40)	4	2	Black	Solder	Flash	Polyamide (PA9T) Nylon 9T	5 A	8.08 mm	0.318 "	D-Sub - Stacked	Stamped	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 10.68
Newark	Each	500	$ 11.98
		1000	$ 11.01
		5000	$ 10.76

Description

General part information

189-037 Series

37, 37 Position D-Sub - Stacked Plug, Male Pins Connector
