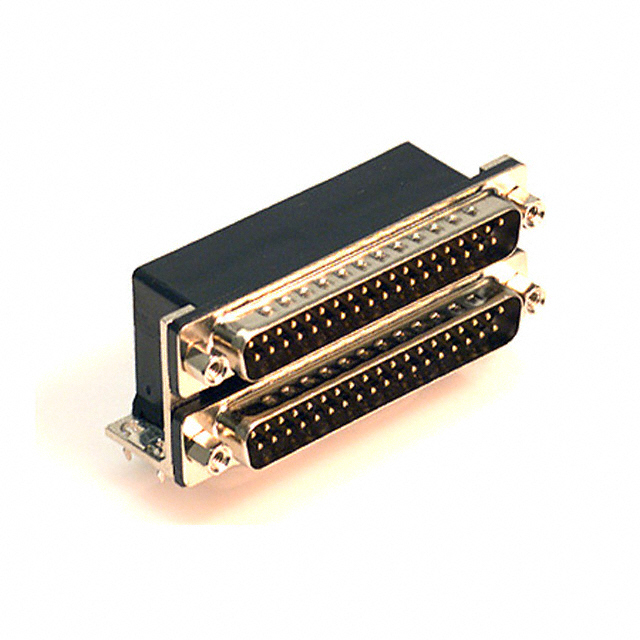

CONN D-SUB PLUG 37POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
189-037-612-571
ObsoleteMH Connectors
CONN D-SUB PLUG 37POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 189-037-612-571 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyester, Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
189-037 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Material Flammability Rating | Contact Finish | Connector Type | Contact Type | Number of Positions | Features | Contact Material | Flange Feature | Shell Size, Connector Layout | Number of Rows | Color | Termination | Contact Finish Thickness | Dielectric Material | Current Rating (Amps) | Backset Spacing | Backset Spacing | Connector Style | Contact Form | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Male Pins Plug | Signal | 37 | Board Lock Grounding Indents | Brass | Female Screwlock (4-40) Mating Side | 4 | 2 | Black | Solder | Flash | Polyester Glass Filled | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | ||
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Plug Male Pins Receptacle Female Sockets | Signal | 37 | Board Lock Grounding Indents | Female Screwlock (4-40) Mating Side | 4 | 2 | Black | Solder | Flash | Polyester Glass Filled | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | |||
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Plug Male Pins Receptacle Female Sockets | Signal | 37 | Board Lock Grounding Indents Shielded | Brass | Housing/Shell (4-40) | 4 | 2 | Black | Solder | Flash | Polyamide (PA9T) Nylon 9T | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | Stamped | Nickel Plated Steel |
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Plug Male Pins Receptacle Female Sockets | Signal | 37 | Board Lock Grounding Indents Shielded | Brass | Female Screwlock (4-40) Mating Side | 4 | 2 | Black | Solder | Flash | Polyamide (PA9T) Nylon 9T | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | Stamped | Nickel Plated Steel |
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Plug Male Pins Receptacle Female Sockets | Signal | 37 | Grounding Indents Shielded | Brass | Female Screwlock (4-40) Mating Side | 4 | 2 | Black | Solder | Flash | Polyamide (PA9T) Nylon 9T | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | Stamped | Nickel Plated Steel |
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Signal | 37 | Shielded | Brass | Female Screwlock (4-40) Mating Side | 4 | 2 | Black | Solder | Flash | Polyamide (PA9T) Nylon 9T | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | Stamped | Nickel Plated Steel |
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Male Pins Plug | Signal | 37 | Board Lock Grounding Indents Shielded | Brass | Housing/Shell (4-40) | 4 | 2 | Black | Solder | Flash | Polyamide (PA9T) Nylon 9T | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | Stamped | Nickel Plated Steel |
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Signal | 37 | Board Lock Shielded | Brass | Female Screwlock (4-40) Mating Side | 4 | 2 | Black | Solder | Flash | Polyamide (PA9T) Nylon 9T | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | Stamped | Nickel Plated Steel |
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Receptacle Female Sockets | Signal | 37 | Shielded | Brass | Housing/Shell (4-40) | 4 | 2 | Black | Solder | Flash | Polyamide (PA9T) Nylon 9T | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | Stamped | Nickel Plated Steel |
MH Connectors | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | UL94 V-0 | Gold | Plug Male Pins Receptacle Female Sockets | Signal | 37 | Board Lock Grounding Indents Shielded | Brass | Housing/Shell (4-40) | 4 | 2 | Black | Solder | Flash | Polyamide (PA9T) Nylon 9T | 5 A | 8.08 mm | 0.318 " | D-Sub - Stacked | Stamped | Nickel Plated Steel |
