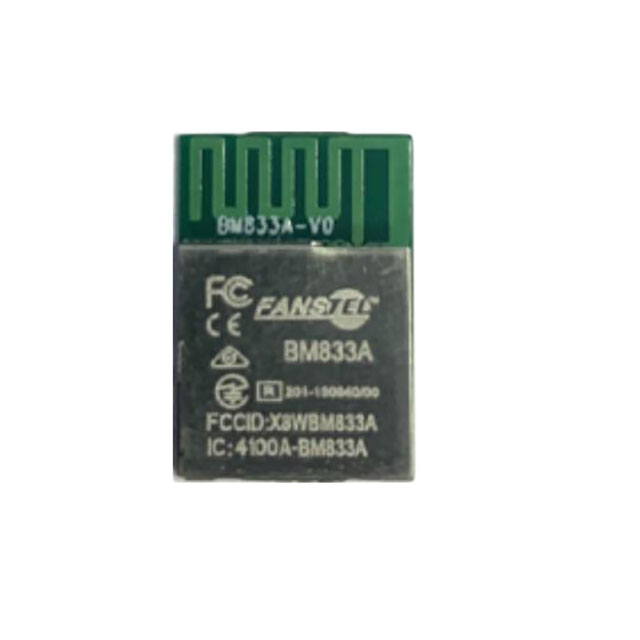

BM833A

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BT TH SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BT TH SMD

Technical Specifications

Parameters and characteristics for this part

Part	Sensitivity	Power - Output	Frequency	Memory Size	Protocol	Antenna Type	Current - Transmitting	Serial Interfaces	Utilized IC / Part	Package / Case	Data Rate	RF Family/Standard	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size [custom]	Memory Size [custom]
Fanstel Corp. BM833A	-104 dBm	4.1 dBm	2.4 GHz	24 kB 192 kB	Bluetooth v5.1	PCB Trace	4.6 mA	ADC GPIO I2C PWM SPI UART	nRF52811	47-SMD Module	2 Mbps	802.15.4 Bluetooth	Surface Mount	85 °C	-40 °C	3.6 V	1.7 V
Fanstel Corp. BM833E	-104 dBm	8 dBm	2.4 GHz		Bluetooth v5.1	Antenna Not Included U.FL	4.6 mA	ADC GPIO I2C PWM SPI UART	nRF52833	68-SMD Module	2 Mbps	802.15.4 Bluetooth	Surface Mount	105 ░C	-40 °C	5.5 V	1.7 V	512 kB	128 kB
Fanstel Corp. BM833F	-104 dBm	8 dBm	2.4 GHz		Bluetooth v5.1	PCB Trace	4.6 mA	ADC GPIO I2C PWM SPI UART	nRF52833	68-SMD Module	2 Mbps	802.15.4 Bluetooth	Surface Mount	105 ░C	-40 °C	5.5 V	1.7 V	512 kB	128 kB
Fanstel Corp. BM833	-104 dBm	8 dBm	2.4 GHz		Bluetooth v5.1	PCB Trace	4.6 mA	ADC GPIO I2C PWM SPI UART	nRF52833	68-SMD Module	2 Mbps	802.15.4 Bluetooth	Surface Mount	105 ░C	-40 °C	5.5 V	1.7 V	512 kB	128 kB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth Bluetooth v5.1 Transceiver Module 2.4GHz PCB Trace Surface Mount
