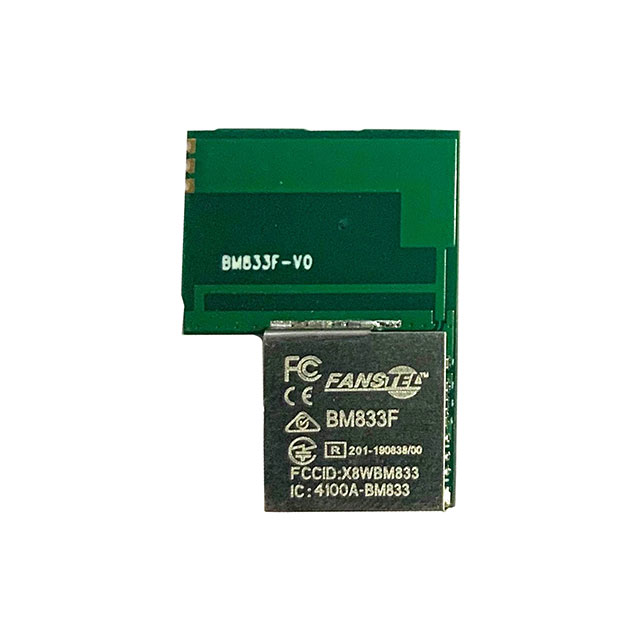

BM833F
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BT TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BM833F
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BT TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BM833F |
|---|---|
| Antenna Type | PCB Trace |
| Current - Transmitting | 4.6 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 128 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 68-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v5.1 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -104 dBm |
| Serial Interfaces | GPIO, I2C, PWM, SPI, UART, ADC |
| Utilized IC / Part | nRF52833 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 13.13 | |
| 10 | $ 10.19 | |||
| 25 | $ 9.32 | |||
| 100 | $ 8.27 | |||
| 250 | $ 7.72 | |||
| 500 | $ 7.36 | |||
| Digi-Reel® | 1 | $ 13.13 | ||
| 10 | $ 10.19 | |||
| 25 | $ 9.32 | |||
| 100 | $ 8.27 | |||
| 250 | $ 7.72 | |||
| 500 | $ 7.36 | |||
| Tape & Reel (TR) | 1000 | $ 7.05 | ||
Description
General part information
BM833 Series
802.15.4, Bluetooth Bluetooth v5.1 Transceiver Module 2.4GHz PCB Trace Surface Mount
