MPQ7220GF-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)

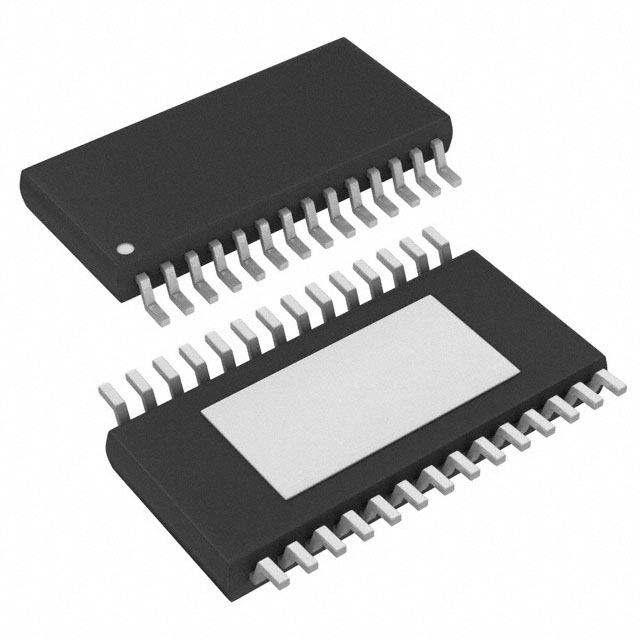

LED DRIVER, AEC-Q100, BOOST, STEP UP, 6 OUTPUT, 3.5 TO 36 VIN, 0.1 A, 2.2MHZ, TSSOP-EP-28
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ7220GF-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
LED DRIVER, AEC-Q100, BOOST, STEP UP, 6 OUTPUT, 3.5 TO 36 VIN, 0.1 A, 2.2MHZ, TSSOP-EP-28
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ7220GF-AEC1-Z |
|---|---|
| Current - Output / Channel | 100 mA |
| Dimming | PWM |
| Frequency [Max] | 2.2 MHz |
| Frequency [Min] | 400 kHz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Exposed Pad, 28-TSSOP |
| Package / Case [custom] | 4.4 mm |
| Package / Case [x] | 0.173 in |
| Qualification | AEC-Q100 |
| Supplier Device Package | 28-TSSOP-EP |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) [Max] | 36 V |
| Voltage - Supply (Min) [Min] | 3.5 V |
MPQ7220 Series
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Utilized IC / Part | Current - Output / Channel | Outputs and Type | Supplied Contents | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Max) [Max] | Dimming | Supplier Device Package | Type | Mounting Type | Voltage - Supply (Min) [Min] | Frequency [Max] | Frequency [Min] | Grade | Number of Outputs | Topology | Qualification | Internal Switch(s) | Package / Case | Package / Case [custom] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MONOLITHIC POWER SYSTEMS (MPS) | 3.5 V | 36 V | 42 V | MPQ7220-AEC1 | 100 mA | 6 Outputs | Board(s) | Dimmable | ||||||||||||||||||
MONOLITHIC POWER SYSTEMS (MPS) | 100 mA | -40 °C | 125 ¯C | 36 V | PWM | 24-QFN (4x4) | DC DC Regulator | Surface Mount | 3.5 V | 2.2 MHz | 400 kHz | Automotive | 6 | Step-Up (Boost) | AEC-Q100 | 24-VFQFN Exposed Pad | ||||||||||
MONOLITHIC POWER SYSTEMS (MPS) | 100 mA | -40 °C | 125 ¯C | 36 V | PWM | 24-QFN (4x4) | DC DC Regulator | Surface Mount | 3.5 V | 2.2 MHz | 400 kHz | Automotive | 6 | Step-Up (Boost) | AEC-Q100 | 24-VFQFN Exposed Pad | ||||||||||
MONOLITHIC POWER SYSTEMS (MPS) | 100 mA | -40 °C | 125 ¯C | 36 V | PWM | 28-TSSOP-EP | DC DC Regulator | Surface Mount | 3.5 V | 2.2 MHz | 400 kHz | Automotive | 6 | Step-Up (Boost) | AEC-Q100 | 28-TSSOP Exposed Pad | 4.4 mm | 0.173 in |
