EVQ7220-R-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ7220-AEC1

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ7220-AEC1

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Utilized IC / Part	Current - Output / Channel	Outputs and Type	Supplied Contents	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Max) [Max]	Dimming	Supplier Device Package	Type	Mounting Type	Voltage - Supply (Min) [Min]	Frequency [Max]	Frequency [Min]	Grade	Number of Outputs	Topology	Qualification	Package / Case	Package / Case [custom]	Package / Case [x]
MONOLITHIC POWER SYSTEMS (MPS) EVQ7220-R-00A	3.5 V	36 V	42 V	MPQ7220-AEC1	100 mA	6 Outputs	Board(s)	Dimmable
MONOLITHIC POWER SYSTEMS (MPS) MPQ7220GR-AEC1-P					100 mA				-40 °C	125 ¯C	36 V	PWM	24-QFN (4x4)	DC DC Regulator	Surface Mount	3.5 V	2.2 MHz	400 kHz	Automotive	6	Step-Up (Boost)	AEC-Q100	24-VFQFN Exposed Pad
MONOLITHIC POWER SYSTEMS (MPS) MPQ7220GR-AEC1-Z					100 mA				-40 °C	125 ¯C	36 V	PWM	24-QFN (4x4)	DC DC Regulator	Surface Mount	3.5 V	2.2 MHz	400 kHz	Automotive	6	Step-Up (Boost)	AEC-Q100	24-VFQFN Exposed Pad
MONOLITHIC POWER SYSTEMS (MPS) MPQ7220GF-AEC1-Z					100 mA				-40 °C	125 ¯C	36 V	PWM	28-TSSOP-EP	DC DC Regulator	Surface Mount	3.5 V	2.2 MHz	400 kHz	Automotive	6	Step-Up (Boost)	AEC-Q100	28-TSSOP Exposed Pad	4.4 mm	0.173 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00

General part information

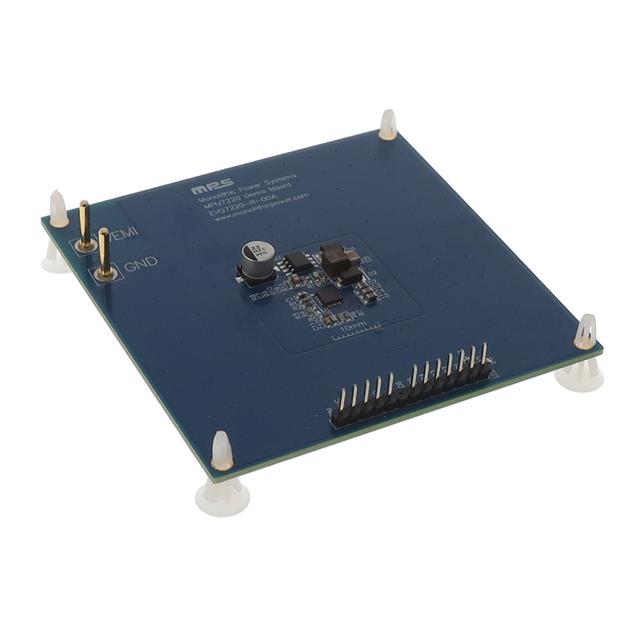

MPQ7220-AEC1 - 6 Non-Isolated Outputs Dimmable LED Driver Evaluation Board
