309-65164

Active

HELLERMANNTYTON

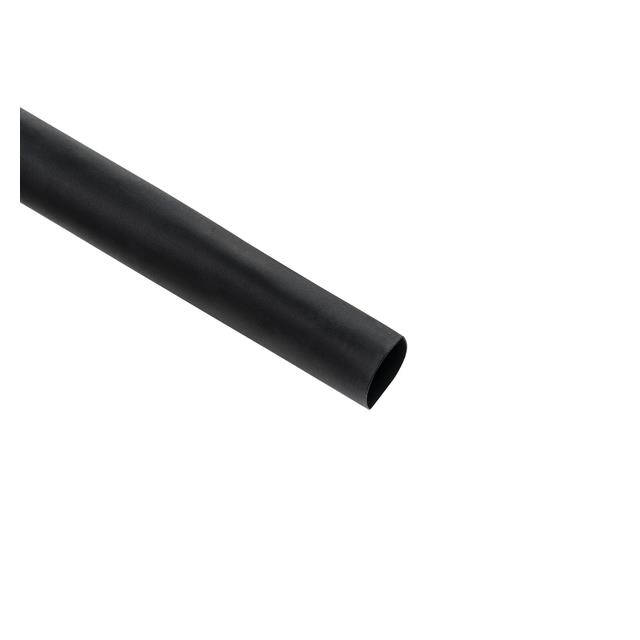

HEAT SHRINK TUBING, TFN21, PACK OF 10 4' STICKS, 2:1, 0.5 ", 12.7 MM, BLACK, 4 FT, 1.2 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet +1

309-65164

Active

HELLERMANNTYTON

HEAT SHRINK TUBING, TFN21, PACK OF 10 4' STICKS, 2:1, 0.5 ", 12.7 MM, BLACK, 4 FT, 1.2 M

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	309-65164

Color	Black
Features	Chemical Resistant, Solvent Resistant, Flame Retardant, Oil Resistant
Inner Diameter - Recovered [diameter]	0.25 in
Inner Diameter - Recovered [diameter]	6.35 mm
Inner Diameter - Supplied [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	0.5 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.61 mm
Recovered Wall Thickness	0.024 in
Shelf Life	60 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature	40 °C
Storage/Refrigeration Temperature	104 °F
Type	Tubing, Flexible

309-65 Series

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Color	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Material	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Type	Features	Shelf Life	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Shelf Life Start	Length	Length	Inner Diameter - Recovered
HELLERMANNTYTON 309-65147	0.252 "	6.4 mm	2 to 1	0.125 in	3.18 mm	Red	0.56 mm	0.022 "	70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C	1.22 m	4 ft	Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F
HELLERMANNTYTON 309-65164	0.5 in	12.7 mm	2 to 1	0.25 in		Black	0.024 in		70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C	1.22 m	4 ft	Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F	6.35 mm	0.61 mm
HELLERMANNTYTON 309-65112		0.093 in	2 to 1	0.047 in		Black	0.48 mm	0.019 "	70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C	30.5 m	100 ft	Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F	1.19 mm		2.36 mm
HELLERMANNTYTON 309-65292	0.252 "	6.4 mm	2 to 1	0.125 in	3.18 mm	Green	0.56 mm	0.022 "	70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C	1.22 m	4 ft	Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F
HELLERMANNTYTON 309-65113		0.093 in	2 to 1	0.047 in		Clear	0.48 mm	0.019 "	70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C	1.22 m	4 ft	Tubing Flexible	Chemical Resistant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F	1.19 mm		2.36 mm
HELLERMANNTYTON 309-65297	1 in	25.4 mm	2 to 1	0.5 in		Red	0.87 mm	0.034 in	70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C	1.22 m	4 ft	Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F	12.7 mm
HELLERMANNTYTON 309-65123	0.125 "	3.18 mm	2 to 1	0.063 in		Black	0.48 mm	0.019 "	70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C			Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F	1.6 mm			Date of Manufacture	1000 ft	304.8 m
HELLERMANNTYTON 309-65131	0.189 in	4.8 mm	2 to 1		2.4 mm	Red	0.48 mm	0.019 "	70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C			Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F					50 ft	15.2 m	0.094 in
HELLERMANNTYTON 309-65158	0.374 in	9.5 mm	2 to 1	0.187 in		White	0.024 in		70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C	1.22 m	4 ft	Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F	4.75 mm	0.61 mm
HELLERMANNTYTON 309-65215	2 in	50.8 mm	2 to 1	1 in		Yellow	0.043 in		70 °C	Polyolefin (PO) Irradiated	135 °C	-55 °C	1.22 m	4 ft	Tubing Flexible	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	60 Months	40 °C	104 °F	25.4 mm	1.09 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.40
		5	$ 3.27
		10	$ 2.52
		25	$ 2.31
		50	$ 2.18
		100	$ 2.04
Newark	Pack of 10	1	$ 30.33
		2	$ 28.65
		5	$ 27.81
		10	$ 26.96
		20	$ 26.12
		50	$ 25.28
		100	$ 24.44
		200	$ 23.59
