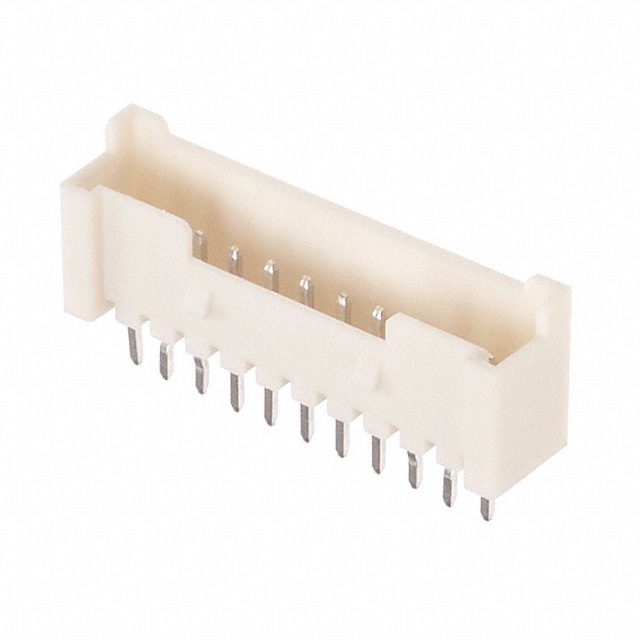

0353621150 - 35362-1110, 35362-1150

0353621150

Active
Molex

CONN HEADER VERT 11POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet35362-yyyy PKG Spec
0353621150 - 35362-1110, 35362-1150

0353621150

Active
Molex

CONN HEADER VERT 11POS 2MM

Deep-Dive with AI

DocumentsDatasheet35362-yyyy PKG Spec

Technical Specifications

Parameters and characteristics for this part

Specification0353621150
ApplicationsAutomotive, General Purpose
Connector TypeHeader
Contact Finish - PostTin
Contact Finish Thickness - Mating1 µm
Contact Finish Thickness - Mating39.4 µin
Contact Finish Thickness - Post1 çm
Contact Finish Thickness - Post39.4 çin
Contact Length - Mating3.7 mm
Contact Length - Mating0.145 in
Contact Length - Post0.13 in
Contact Length - Post3.3 mm
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypeLocking Ramp
Insulation ColorNatural
Insulation Height0.335 "
Insulation Height8.51 mm
Insulation MaterialPolyamide (PA), Nylon
Mated Stacking Heights8.5 mm
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions11
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationKinked Pin, Solder
Voltage Rating125 VDC

035362 Series

PartContact Length - MatingContact Length - MatingContact TypeNumber of RowsContact Finish Thickness - MatingContact Finish Thickness - MatingNumber of Positions LoadedTerminationVoltage RatingConnector TypeContact ShapeInsulation MaterialStyleContact MaterialMated Stacking HeightsFastening TypeApplicationsMounting TypeNumber of PositionsContact Length - PostContact Length - PostOperating Temperature [Min]Operating Temperature [Max]Material Flammability RatingPitch - Mating [x]Pitch - Mating [x]Contact Finish - PostInsulation ColorShroudingInsulation HeightInsulation HeightContact Finish Thickness - PostContact Finish Thickness - PostContact Finish - Mating
Molex
0353620976
3.7 mm
0.145 in
Male Pin
1
1 µm
39.4 µin
All
Kinked Pin
Solder
125 VDC
Header
Square
Nylon
Polyamide (PA)
Board to Cable/Wire
Brass
8.5 mm
Locking Ramp
Automotive
General Purpose
Through Hole
9
0.13 in
3.3 mm
-40 °C
105 ░C
UL94 V-0
0.079 in
2 mm
Tin
Natural
Shrouded - 4 Wall
0.335 "
8.51 mm
1 çm
39.4 çin
Molex
0353620210
3.7 mm
0.145 in
Male Pin
1
2 µm
78.7 µin
All
Solder
125 VDC
Header
Square
Polyamide (PA66)
Nylon 6/6
Board to Cable/Wire
Brass
Locking Ramp
Automotive
General Purpose
Through Hole
2
0.13 in
3.3 mm
-40 °C
105 ░C
UL94 V-0
0.079 in
2 mm
Tin-Lead
Natural
Shrouded - 4 Wall
0.335 "
8.51 mm
2 çm
78.7 çin
Tin-Lead
Molex
0353621510
3.7 mm
0.145 in
Male Pin
1
2 µm
78.7 µin
All
Kinked Pin
Solder
125 VDC
Header
Square
Polyamide (PA66)
Nylon 6/6
Board to Cable/Wire
Brass
Locking Ramp
Automotive
General Purpose
Through Hole
15
0.13 in
3.3 mm
-40 °C
105 ░C
UL94 V-0
0.079 in
2 mm
Tin-Lead
Natural
Shrouded - 4 Wall
0.335 "
8.51 mm
2 çm
78.7 çin
Tin-Lead
Molex
0353620570
Molex
0353620576
3.7 mm
0.145 in
Male Pin
1
1 µm
39.4 µin
All
Kinked Pin
Solder
125 VDC
Header
Square
Nylon
Polyamide (PA)
Board to Cable/Wire
Brass
8.5 mm
Locking Ramp
Automotive
General Purpose
Through Hole
0.13 in
3.3 mm
-40 °C
105 ░C
UL94 V-0
0.079 in
2 mm
Tin
Natural
Shrouded - 4 Wall
0.335 "
8.51 mm
1 çm
39.4 çin
Molex
0353620910
3.7 mm
0.145 in
Male Pin
1
2 µm
78.7 µin
All
Kinked Pin
Solder
125 VDC
Header
Square
Polyamide (PA66)
Nylon 6/6
Board to Cable/Wire
Brass
Locking Ramp
Automotive
General Purpose
Through Hole
9
0.13 in
3.3 mm
-40 °C
105 ░C
UL94 V-0
0.079 in
2 mm
Tin-Lead
Natural
Shrouded - 4 Wall
0.335 "
8.51 mm
2 çm
78.7 çin
Tin-Lead
Molex
0353620950
3.7 mm
0.145 in
Male Pin
1
1 µm
39.4 µin
All
Kinked Pin
Solder
125 VDC
Header
Square
Nylon
Polyamide (PA)
Board to Cable/Wire
Brass
8.5 mm
Locking Ramp
Automotive
General Purpose
Through Hole
9
0.13 in
3.3 mm
-40 °C
105 ░C
UL94 V-0
0.079 in
2 mm
Tin
Natural
Shrouded - 4 Wall
0.335 "
8.51 mm
1 çm
39.4 çin
Molex
0353620267
3.7 mm
0.145 in
Male Pin
1
1 µm
39.4 µin
All
Solder
Header
Square
Nylon
Polyamide (PA)
Board to Cable/Wire
Brass
Locking Ramp
Automotive
General Purpose
Through Hole
2
0.13 in
3.3 mm
UL94 V-0
0.079 in
2 mm
Tin
Red
Shrouded - 4 Wall
0.335 "
8.51 mm
1 çm
39.4 çin
Molex
0353621150
3.7 mm
0.145 in
Male Pin
1
1 µm
39.4 µin
All
Kinked Pin
Solder
125 VDC
Header
Square
Nylon
Polyamide (PA)
Board to Cable/Wire
Brass
8.5 mm
Locking Ramp
Automotive
General Purpose
Through Hole
11
0.13 in
3.3 mm
-40 °C
105 ░C
UL94 V-0
0.079 in
2 mm
Tin
Natural
Shrouded - 4 Wall
0.335 "
8.51 mm
1 çm
39.4 çin
Molex
0353621350
3.7 mm
0.145 in
Male Pin
1
1 µm
39.4 µin
All
Kinked Pin
Solder
125 VDC
Header
Square
Nylon
Polyamide (PA)
Board to Cable/Wire
Brass
8.5 mm
Locking Ramp
Automotive
General Purpose
Through Hole
13
0.13 in
3.3 mm
-40 °C
105 ░C
UL94 V-0
0.079 in
2 mm
Tin
Natural
Shrouded - 4 Wall
0.335 "
8.51 mm
1 çm
39.4 çin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.57
10$ 0.47
100$ 0.39
1000$ 0.34

Description

General part information

035362 Series

Connector Header Through Hole 11 position 0.079" (2.00mm)
