0353620950

Active

Molex

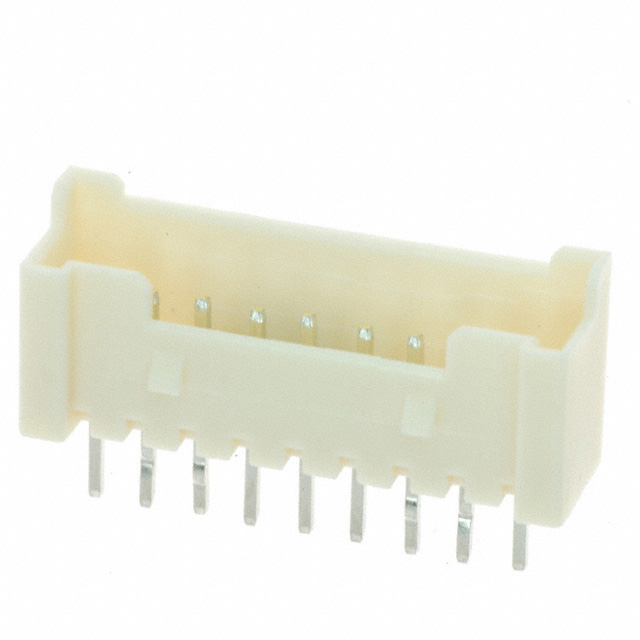

CONN HEADER VERT 9POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents35362-yyyy PKG Spec Datasheet

0353620950

Active

Molex

CONN HEADER VERT 9POS 2MM

Deep-Dive with AI

Documents35362-yyyy PKG Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0353620950

Applications	Automotive, General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	3.7 mm
Contact Length - Mating	0.145 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	8.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	125 VDC

035362 Series

Part	Contact Length - Mating	Contact Length - Mating	Contact Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Voltage Rating	Connector Type	Contact Shape	Insulation Material	Style	Contact Material	Mated Stacking Heights	Fastening Type	Applications	Mounting Type	Number of Positions	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Insulation Color	Shrouding	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating
Molex 0353620976	3.7 mm	0.145 in	Male Pin	1	1 µm	39.4 µin	All	Kinked Pin Solder	125 VDC	Header	Square	Nylon Polyamide (PA)	Board to Cable/Wire	Brass	8.5 mm	Locking Ramp	Automotive General Purpose	Through Hole	9	0.13 in	3.3 mm	-40 °C	105 ░C	UL94 V-0	0.079 in	2 mm	Tin	Natural	Shrouded - 4 Wall	0.335 "	8.51 mm	1 çm	39.4 çin
Molex 0353620210	3.7 mm	0.145 in	Male Pin	1	2 µm	78.7 µin	All	Solder	125 VDC	Header	Square	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	Brass		Locking Ramp	Automotive General Purpose	Through Hole	2	0.13 in	3.3 mm	-40 °C	105 ░C	UL94 V-0	0.079 in	2 mm	Tin-Lead	Natural	Shrouded - 4 Wall	0.335 "	8.51 mm	2 çm	78.7 çin	Tin-Lead
Molex 0353621510	3.7 mm	0.145 in	Male Pin	1	2 µm	78.7 µin	All	Kinked Pin Solder	125 VDC	Header	Square	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	Brass		Locking Ramp	Automotive General Purpose	Through Hole	15	0.13 in	3.3 mm	-40 °C	105 ░C	UL94 V-0	0.079 in	2 mm	Tin-Lead	Natural	Shrouded - 4 Wall	0.335 "	8.51 mm	2 çm	78.7 çin	Tin-Lead
Molex 0353620570
Molex 0353620576	3.7 mm	0.145 in	Male Pin	1	1 µm	39.4 µin	All	Kinked Pin Solder	125 VDC	Header	Square	Nylon Polyamide (PA)	Board to Cable/Wire	Brass	8.5 mm	Locking Ramp	Automotive General Purpose	Through Hole		0.13 in	3.3 mm	-40 °C	105 ░C	UL94 V-0	0.079 in	2 mm	Tin	Natural	Shrouded - 4 Wall	0.335 "	8.51 mm	1 çm	39.4 çin
Molex 0353620910	3.7 mm	0.145 in	Male Pin	1	2 µm	78.7 µin	All	Kinked Pin Solder	125 VDC	Header	Square	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	Brass		Locking Ramp	Automotive General Purpose	Through Hole	9	0.13 in	3.3 mm	-40 °C	105 ░C	UL94 V-0	0.079 in	2 mm	Tin-Lead	Natural	Shrouded - 4 Wall	0.335 "	8.51 mm	2 çm	78.7 çin	Tin-Lead
Molex 0353620950	3.7 mm	0.145 in	Male Pin	1	1 µm	39.4 µin	All	Kinked Pin Solder	125 VDC	Header	Square	Nylon Polyamide (PA)	Board to Cable/Wire	Brass	8.5 mm	Locking Ramp	Automotive General Purpose	Through Hole	9	0.13 in	3.3 mm	-40 °C	105 ░C	UL94 V-0	0.079 in	2 mm	Tin	Natural	Shrouded - 4 Wall	0.335 "	8.51 mm	1 çm	39.4 çin
Molex 0353620267	3.7 mm	0.145 in	Male Pin	1	1 µm	39.4 µin	All	Solder		Header	Square	Nylon Polyamide (PA)	Board to Cable/Wire	Brass		Locking Ramp	Automotive General Purpose	Through Hole	2	0.13 in	3.3 mm			UL94 V-0	0.079 in	2 mm	Tin	Red	Shrouded - 4 Wall	0.335 "	8.51 mm	1 çm	39.4 çin
Molex 0353621150	3.7 mm	0.145 in	Male Pin	1	1 µm	39.4 µin	All	Kinked Pin Solder	125 VDC	Header	Square	Nylon Polyamide (PA)	Board to Cable/Wire	Brass	8.5 mm	Locking Ramp	Automotive General Purpose	Through Hole	11	0.13 in	3.3 mm	-40 °C	105 ░C	UL94 V-0	0.079 in	2 mm	Tin	Natural	Shrouded - 4 Wall	0.335 "	8.51 mm	1 çm	39.4 çin
Molex 0353621350	3.7 mm	0.145 in	Male Pin	1	1 µm	39.4 µin	All	Kinked Pin Solder	125 VDC	Header	Square	Nylon Polyamide (PA)	Board to Cable/Wire	Brass	8.5 mm	Locking Ramp	Automotive General Purpose	Through Hole	13	0.13 in	3.3 mm	-40 °C	105 ░C	UL94 V-0	0.079 in	2 mm	Tin	Natural	Shrouded - 4 Wall	0.335 "	8.51 mm	1 çm	39.4 çin
