109P0405M6D01

Active

Sanyo Denki America Inc.

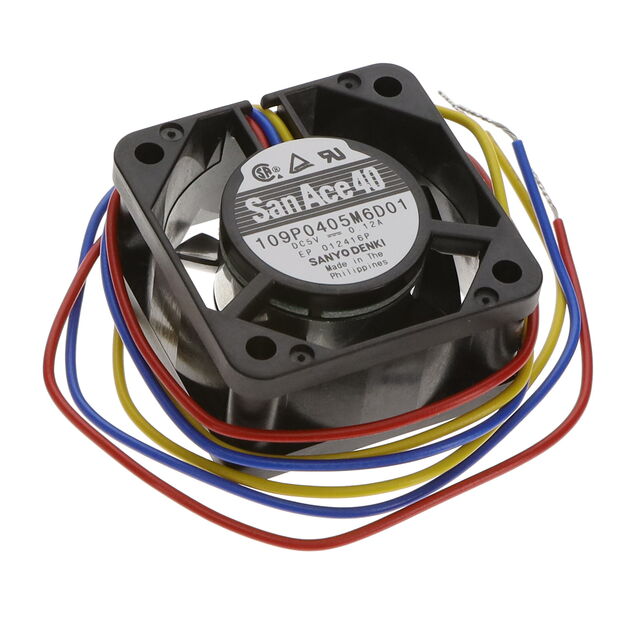

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing

109P0405M6D01

Active

Sanyo Denki America Inc.

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0405M6D01

Air Flow	0.134 m³/min
Air Flow	4.8 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Material - Blade	Plastic
Material - Frame	Plastic
Noise	24 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	600 mW
RPM	5000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	26.4 Pa
Static Pressure	0.106 in H2O
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	0.101 lb
Weight	45.81 g
Width [y]	20 mm

109P0405 Series

Part	Weight	Weight	Features	Bearing Type	Power (Watts)	Termination	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Approval Agency	Fan Type	Material - Blade	Voltage - Rated	Static Pressure	Static Pressure	RPM	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Air Flow	Air Flow	Lifetime @ Temp.	Operating Temperature [Max]	Width [x]
Sanyo Denki America Inc. 109P0405F3D013	0.115 lb	52.16 g	Locked Rotor Sensor	Ball	1.4 W	3 Wire Leads	0.28 A	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	58.8 Pa	0.236 in H2O	6700 RPM	4.5 V	5.5 V	Plastic	30 dB(A)	-20 °C	70 °C	-20 C	70 °C	28 mm	0.241 mł/min	8.6 CFM
Sanyo Denki America Inc. 109P0405F601	0.101 lb	45.81 g	Speed Sensor (Tach)	Ball	1.25 W	3 Wire Leads	0.25 A	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	45.1 Pa	0.181 in H2O	6500 RPM	4.5 V	5.5 V	Plastic	28 dB	-20 °C	70 °C	-20 C	70 °C	20 mm	0.182 m³/min	6.5 CFM
Sanyo Denki America Inc. 109P0405J601	0.101 lb	45.81 g	Speed Sensor (Tach)	Ball	2.3 W	3 Wire Leads	460 mA	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	98.6 Pa	0.396 in H2O	9800 RPM	4.5 V	5.5 V	Plastic	39 dB(A)	-20 °C	70 °C	-20 C	70 °C	20 mm	0.277 m³/min	9.9 CFM	40000 Hrs
Sanyo Denki America Inc. 109P0405F6D01	0.101 lb	45.81 g	Locked Rotor Sensor	Ball	1.25 W	3 Wire Leads	0.25 A	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	45.1 Pa	0.181 in H2O	6500 RPM	4.5 V	5.5 V	Plastic	28 dB	-20 °C	70 °C	-20 C	70 °C	20 mm	0.182 m³/min	6.5 CFM
Sanyo Denki America Inc. 109P0405F3013	0.115 lb	52.16 g	Locked Rotor Protection Speed Sensor (Tach)	Ball	1.4 W	3 Wire Leads	0.28 A	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	58.8 Pa	0.236 in H2O	6700 RPM	4.5 V	5.5 V	Plastic	30 dB(A)	-20 °C	70 °C	-20 C	70 °C	28 mm	0.241 mł/min	8.6 CFM
Sanyo Denki America Inc. 109P0405M9D01	0.042 lb	19.05 g	Locked Rotor Sensor	Ball	550 mW	3 Wire Leads	110 mA	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	27 Pa	0.108 in H2O	5000 RPM	4.5 V	5.5 V	Plastic	21 dB(A)	-10 °C		-10 °C	60 °C	10 mm	0.118 m³/min	4.2 CFM	40000 Hrs	60 °C
Sanyo Denki America Inc. 109P0405H302	0.115 lb	52.16 g		Ball	3.4 W	2 Wire Leads	0.68 A	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	58.8 Pa	0.236 in H2O	8700 RPM	4.5 V	5.5 V	Plastic	37 dB	-20 °C	70 °C	-20 C	70 °C	28 mm	0.316 m³/min	11.3 CFM	40000 Hrs
Sanyo Denki America Inc. 109P0405M6D01	0.101 lb	45.81 g	Locked Rotor Sensor	Ball	600 mW	3 Wire Leads	120 mA	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	26.4 Pa	0.106 in H2O	5000 RPM	4.5 V	5.5 V	Plastic	24 dB	-20 °C	70 °C	-20 C	70 °C	20 mm	0.134 m³/min	4.8 CFM
Sanyo Denki America Inc. 109P0405M701	0.071 lb	32.21 g	Locked Rotor Protection Speed Sensor (Tach)	Ball	1.05 W	3 Wire Leads	0.21 A	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	53 Pa	0.213 in H2O	6500 RPM	4.5 V	5.5 V	Plastic	24 dB	-20 °C	70 °C	-20 C	70 °C		0.148 m³/min	5.3 CFM			15 mm
Sanyo Denki America Inc. 109P0405M901	0.042 lb	19.05 g	Locked Rotor Protection Speed Sensor (Tach)	Ball	550 mW	3 Wire Leads	110 mA	40 mm	Square	40 mm	CSA TUV UL	Tubeaxial	Plastic	5 V	27 Pa	0.108 in H2O	5000 RPM	4.5 V	5.5 V	Plastic	21 dB(A)	-10 °C		-10 °C	60 °C	10 mm	0.118 m³/min	4.2 CFM	40000 Hrs	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.34
		10	$ 14.64
		25	$ 13.77
		70	$ 13.24
		140	$ 12.20
		280	$ 11.41
		560	$ 11.24

Description

General part information

109P0405 Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 4.8 CFM (0.134m³/min) 3 Wire Leads
