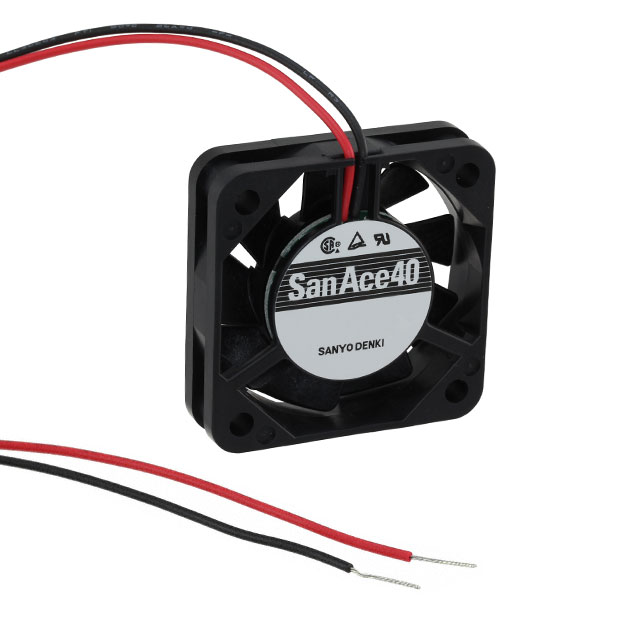

109P0405H302
ActiveSanyo Denki America Inc.
FAN AXIAL 40X28MM BALL 5VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
109P0405H302
ActiveSanyo Denki America Inc.
FAN AXIAL 40X28MM BALL 5VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 109P0405H302 |
|---|---|
| Air Flow | 0.316 m³/min |
| Air Flow | 11.3 CFM |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.68 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 37 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 3.4 W |
| RPM | 8700 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 58.8 Pa |
| Static Pressure | 0.236 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 5.5 V |
| Voltage Range [Min] | 4.5 V |
| Weight | 0.115 lb |
| Weight | 52.16 g |
| Width [y] | 28 mm |
109P0405 Series
| Part | Weight | Weight | Features | Bearing Type | Power (Watts) | Termination | Current Rating (Amps) | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Approval Agency | Fan Type | Material - Blade | Voltage - Rated | Static Pressure | Static Pressure | RPM | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Air Flow | Air Flow | Lifetime @ Temp. | Operating Temperature [Max] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanyo Denki America Inc. | 0.115 lb | 52.16 g | Locked Rotor Sensor | Ball | 1.4 W | 3 Wire Leads | 0.28 A | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 58.8 Pa | 0.236 in H2O | 6700 RPM | 4.5 V | 5.5 V | Plastic | 30 dB(A) | -20 °C | 70 °C | -20 C | 70 °C | 28 mm | 0.241 mł/min | 8.6 CFM | |||
Sanyo Denki America Inc. | 0.101 lb | 45.81 g | Speed Sensor (Tach) | Ball | 1.25 W | 3 Wire Leads | 0.25 A | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 45.1 Pa | 0.181 in H2O | 6500 RPM | 4.5 V | 5.5 V | Plastic | 28 dB | -20 °C | 70 °C | -20 C | 70 °C | 20 mm | 0.182 m³/min | 6.5 CFM | |||
Sanyo Denki America Inc. | 0.101 lb | 45.81 g | Speed Sensor (Tach) | Ball | 2.3 W | 3 Wire Leads | 460 mA | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 98.6 Pa | 0.396 in H2O | 9800 RPM | 4.5 V | 5.5 V | Plastic | 39 dB(A) | -20 °C | 70 °C | -20 C | 70 °C | 20 mm | 0.277 m³/min | 9.9 CFM | 40000 Hrs | ||
Sanyo Denki America Inc. | 0.101 lb | 45.81 g | Locked Rotor Sensor | Ball | 1.25 W | 3 Wire Leads | 0.25 A | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 45.1 Pa | 0.181 in H2O | 6500 RPM | 4.5 V | 5.5 V | Plastic | 28 dB | -20 °C | 70 °C | -20 C | 70 °C | 20 mm | 0.182 m³/min | 6.5 CFM | |||
Sanyo Denki America Inc. | 0.115 lb | 52.16 g | Locked Rotor Protection Speed Sensor (Tach) | Ball | 1.4 W | 3 Wire Leads | 0.28 A | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 58.8 Pa | 0.236 in H2O | 6700 RPM | 4.5 V | 5.5 V | Plastic | 30 dB(A) | -20 °C | 70 °C | -20 C | 70 °C | 28 mm | 0.241 mł/min | 8.6 CFM | |||
Sanyo Denki America Inc. | 0.042 lb | 19.05 g | Locked Rotor Sensor | Ball | 550 mW | 3 Wire Leads | 110 mA | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 27 Pa | 0.108 in H2O | 5000 RPM | 4.5 V | 5.5 V | Plastic | 21 dB(A) | -10 °C | -10 °C | 60 °C | 10 mm | 0.118 m³/min | 4.2 CFM | 40000 Hrs | 60 °C | ||
Sanyo Denki America Inc. | 0.115 lb | 52.16 g | Ball | 3.4 W | 2 Wire Leads | 0.68 A | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 58.8 Pa | 0.236 in H2O | 8700 RPM | 4.5 V | 5.5 V | Plastic | 37 dB | -20 °C | 70 °C | -20 C | 70 °C | 28 mm | 0.316 m³/min | 11.3 CFM | 40000 Hrs | |||
Sanyo Denki America Inc. | 0.101 lb | 45.81 g | Locked Rotor Sensor | Ball | 600 mW | 3 Wire Leads | 120 mA | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 26.4 Pa | 0.106 in H2O | 5000 RPM | 4.5 V | 5.5 V | Plastic | 24 dB | -20 °C | 70 °C | -20 C | 70 °C | 20 mm | 0.134 m³/min | 4.8 CFM | |||
Sanyo Denki America Inc. | 0.071 lb | 32.21 g | Locked Rotor Protection Speed Sensor (Tach) | Ball | 1.05 W | 3 Wire Leads | 0.21 A | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 53 Pa | 0.213 in H2O | 6500 RPM | 4.5 V | 5.5 V | Plastic | 24 dB | -20 °C | 70 °C | -20 C | 70 °C | 0.148 m³/min | 5.3 CFM | 15 mm | |||
Sanyo Denki America Inc. | 0.042 lb | 19.05 g | Locked Rotor Protection Speed Sensor (Tach) | Ball | 550 mW | 3 Wire Leads | 110 mA | 40 mm | Square | 40 mm | CSA TUV UL | Tubeaxial | Plastic | 5 V | 27 Pa | 0.108 in H2O | 5000 RPM | 4.5 V | 5.5 V | Plastic | 21 dB(A) | -10 °C | -10 °C | 60 °C | 10 mm | 0.118 m³/min | 4.2 CFM | 40000 Hrs | 60 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.46 | |
| 10 | $ 13.80 | |||
| 25 | $ 12.98 | |||
| 50 | $ 12.49 | |||
| 126 | $ 11.50 | |||
| 252 | $ 10.76 | |||
| 504 | $ 10.60 | |||
Description
General part information
109P0405 Series
Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 11.3 CFM (0.316mł/min) 2 Wire Leads
