Technical Specifications
Parameters and characteristics for this part
| Specification | M20-7880946 |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 5.9 mm |
| Insulation Height | 0.232 in |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 1000 VDC |
M20-788 Series
| Part | Termination | Style | Connector Type | Number of Positions | Number of Rows | Contact Material | Current Rating (Amps) | Material Flammability Rating | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Number of Positions Loaded | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Insulation Height | Insulation Height | Insulation Color | Voltage Rating | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Contact Type | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 24 | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | |
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 10 | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | Gold |
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 20 | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | Gold |
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 18 | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | |
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | Gold | |
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 28 | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | |
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 10 | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | |
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 24 | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | Gold |
Harwin Inc. | Solder | Board to Board Cable | Receptacle | 6 | 2 | Phosphor Bronze | 3 A | UL94 V-0 | Push-Pull | 2.54 mm | 0.1 in | Nylon 6T Polyamide (PA6T) | All | General Purpose Industrial Telecommunications | -40 °C | 105 ░C | Square | 5.9 mm | 0.232 in | Black | 1000 VDC | Tin | 0.118 in | 3 mm | Female Socket | Through Hole Right Angle | 0.1 in | 2.54 mm | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-788 Series

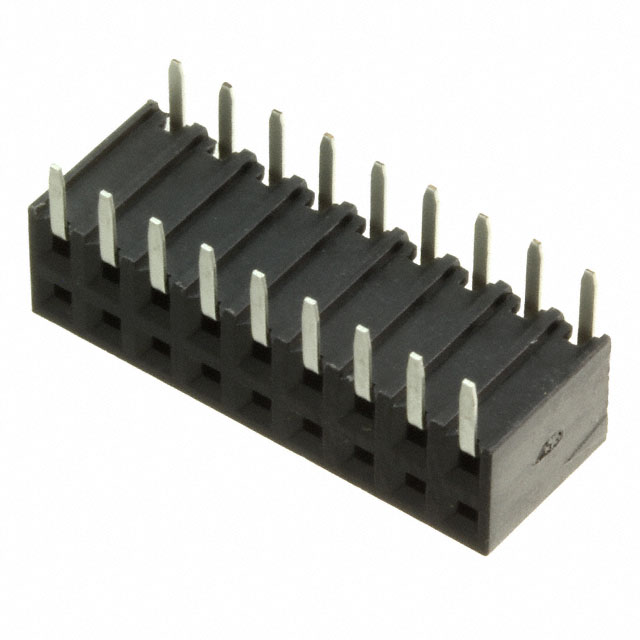

18 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
