M20-7880546

Active

Harwin Inc.

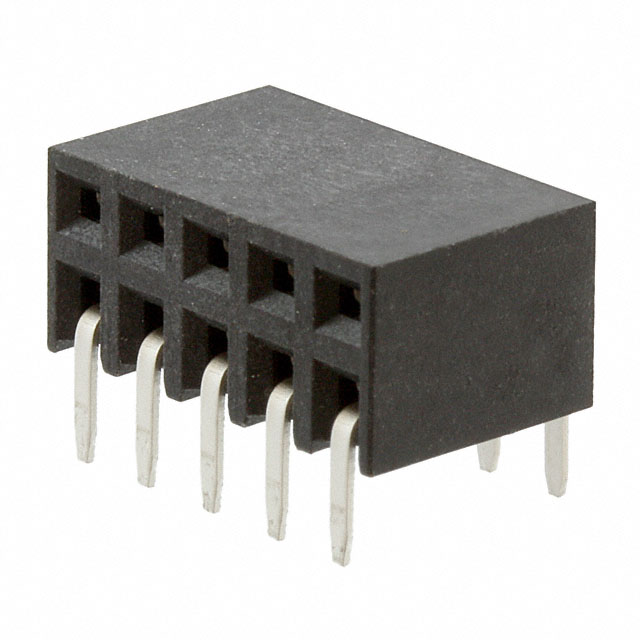

BOARD-TO-BOARD CONNECTOR, M20 SERIES, THROUGH HOLE, RECEPTACLE, 10, 2.54 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 Datasheet +4

M20-7880546

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, M20 SERIES, THROUGH HOLE, RECEPTACLE, 10, 2.54 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-7880546

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	1000 VDC

M20-788 Series

Part	Termination	Style	Connector Type	Number of Positions	Number of Rows	Contact Material	Current Rating (Amps)	Material Flammability Rating	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Number of Positions Loaded	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insulation Height	Insulation Height	Insulation Color	Voltage Rating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Type	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating
Harwin Inc. M20-7881246	Solder	Board to Board Cable	Receptacle	24	2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm
Harwin Inc. M20-7880542	Solder	Board to Board Cable	Receptacle	10	2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm	Gold
Harwin Inc. M20-7881042	Solder	Board to Board Cable	Receptacle	20	2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm	Gold
Harwin Inc. M20-7880946	Solder	Board to Board Cable	Receptacle	18	2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm
Harwin Inc. M20-7881642	Solder	Board to Board Cable	Receptacle		2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm	Gold
Harwin Inc. M20-7881446	Solder	Board to Board Cable	Receptacle	28	2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm
Harwin Inc. M20-7880546	Solder	Board to Board Cable	Receptacle	10	2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm
Harwin Inc. M20-7881242	Solder	Board to Board Cable	Receptacle	24	2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm	Gold
Harwin Inc. M20-7880342	Solder	Board to Board Cable	Receptacle	6	2	Phosphor Bronze	3 A	UL94 V-0	Push-Pull	2.54 mm	0.1 in	Nylon 6T Polyamide (PA6T)	All	General Purpose Industrial Telecommunications	-40 °C	105 ░C	Square	5.9 mm	0.232 in	Black	1000 VDC	Tin	0.118 in	3 mm	Female Socket	Through Hole Right Angle	0.1 in	2.54 mm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.02
		44	$ 1.65
		132	$ 1.57
		528	$ 1.31
		1012	$ 1.12
		5016	$ 1.00
		10032	$ 0.97
Newark	Each	1	$ 1.87
		10	$ 1.67
		50	$ 1.51
		100	$ 1.38
		250	$ 1.28
		500	$ 1.20
		1000	$ 1.12
		2500	$ 1.06

Description

General part information

M20-788 Series

10 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
