SSA-LXB525ID
ActiveLumex Opto/Components Inc.

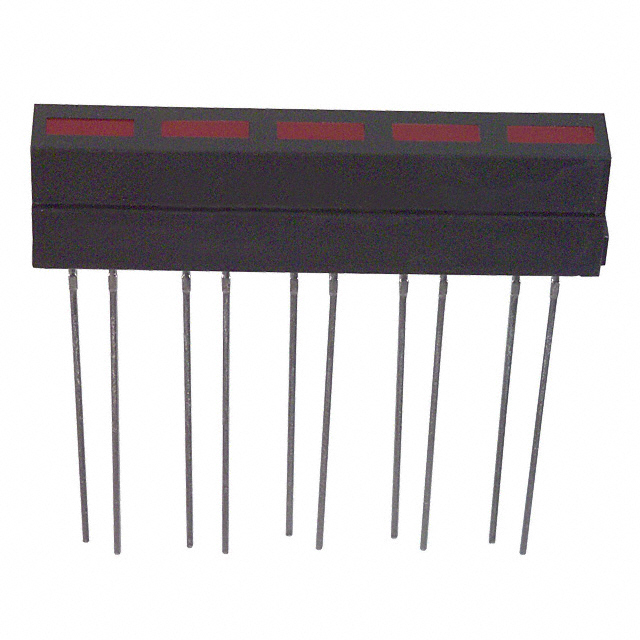

LED CBI 5.3X1.8MM 5-SEG RED VERT
Deep-Dive with AI
Search across all available documentation for this part.
SSA-LXB525ID
ActiveLumex Opto/Components Inc.
LED CBI 5.3X1.8MM 5-SEG RED VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSA-LXB525ID |
|---|---|
| Color | Red (x 5) |
| Configuration | Bar, SIP |
| Configuration [custom] | 5 |
| Current | 30 mA |
| Lens Size [x] | 5.3 mm |
| Lens Size [y] | 1.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 12 mcd |
| Mounting Type | Through Hole |
| Viewing Angle | 110 ° |
| Voltage Rating | 2 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.48 | |
| 10 | $ 2.46 | |||
| 210 | $ 2.02 | |||
| 630 | $ 1.70 | |||
| 1050 | $ 1.56 | |||
| 2100 | $ 1.49 | |||
| 5040 | $ 1.46 | |||
Description
General part information
SSA-LXB525 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - 5 Wide, SIP Red (x 5) Diffused, Tinted 2V 30mA Rectangle with Flat Top 5.30mm x 1.80mm Through Hole
Documents
Technical documentation and resources
No documents available
