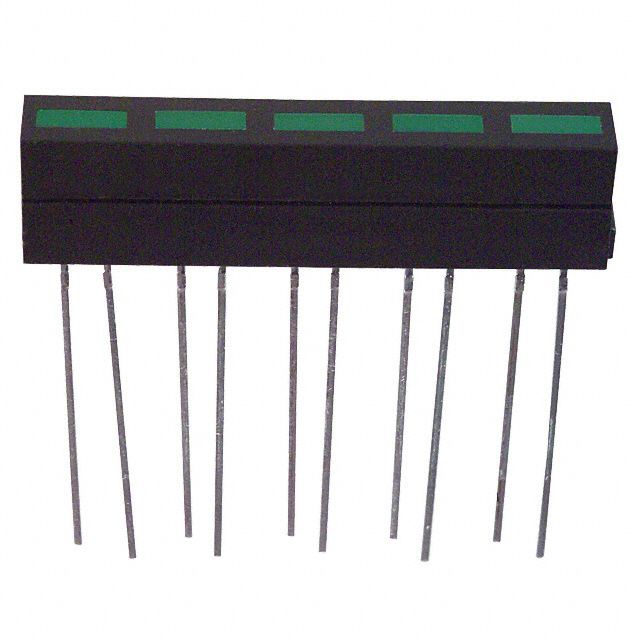

SSA-LXB525GD

Active

Lumex Opto/Components Inc.

LED CBI 5.3X1.8MM 5-SEG GRN VERT

Deep-Dive with AI

Search across all available documentation for this part.

SSA-LXB525GD

Active

Lumex Opto/Components Inc.

LED CBI 5.3X1.8MM 5-SEG GRN VERT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-LXB525GD

Color	Green (x 5)
Configuration	Bar, SIP
Configuration [custom]	5
Current	25 mA
Lens Size [x]	5.3 mm
Lens Size [y]	1.8 mm
Lens Style	Rectangle with Flat Top
Lens Type	Tinted, Diffused
Millicandela Rating	10 mcd
Mounting Type	Through Hole
Viewing Angle	110 °
Wavelength - Peak	565 nm

SSA-LXB525 Series

Part	Color	Lens Type	Voltage Rating	Lens Style	Wavelength - Peak	Configuration	Configuration [custom]	Millicandela Rating	Current	Mounting Type	Viewing Angle	Lens Size [x]	Lens Size [y]
Lumex Opto/Components Inc. SSA-LXB525ID	Red (x 5)	Diffused Tinted	2 V	Rectangle with Flat Top	635 nm	Bar SIP	5	12 mcd	30 mA	Through Hole	110 °	5.3 mm	1.8 mm
Lumex Opto/Components Inc. SSA-LXB525GD	Green (x 5)	Diffused Tinted		Rectangle with Flat Top	565 nm	Bar SIP	5	10 mcd	25 mA	Through Hole	110 °	5.3 mm	1.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.82
		10	$ 2.70
		210	$ 2.21
		1050	$ 1.71
		5040	$ 1.61

Description

General part information

SSA-LXB525 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 5 Wide, SIP Green (x 5) Diffused, Tinted 2.2V 25mA Rectangle with Flat Top 5.30mm x 1.80mm Through Hole

Documents

Technical documentation and resources

No documents available
