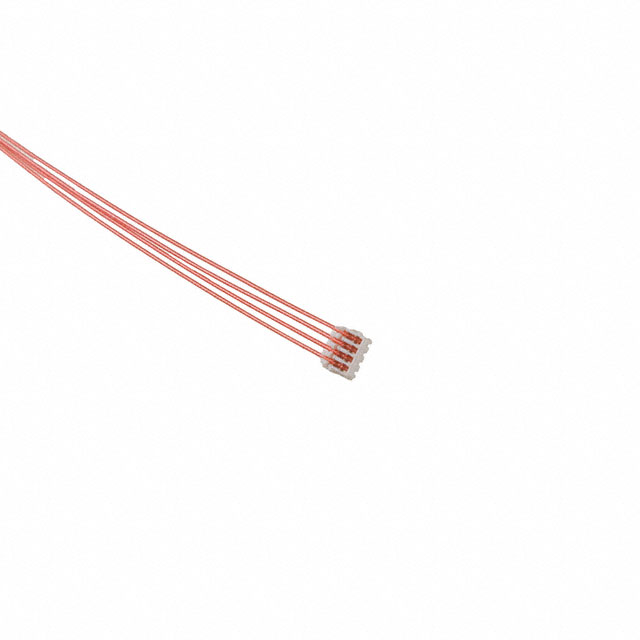

A04XSR04XSR36R102B

Active

JST Sales America Inc.

JUMPER 04XSR-36S - 04XSR-36S 4"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 04XSR-36S - 04XSR-36S 4"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Length	Length	Length	Contact Finish	Cable Termination	Color	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A04XSR04XSR36R152A	Socket to Socket Reversed	152.4 mm	6 "	0.5 '	Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4
JST Sales America Inc. A04XSR04XSR36R51A	Socket to Socket Reversed	50.8 mm	2 "		Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4	0.167 '
JST Sales America Inc. A04XSR04XSR36R102B	Socket to Socket				Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A04XSR04XSR36R102A	Socket to Socket Reversed				Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A04XSR04XSR36R295B	Socket to Socket				Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4		11.61 "	0.968 '	295 mm
JST Sales America Inc. A04XSR04XSR36R51B	Socket to Socket	50.8 mm	2 "		Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4	0.167 '
JST Sales America Inc. A04XSR04XSR36R203B	Socket to Socket	203.2 mm	8 in		Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4	0.667 ft
JST Sales America Inc. A04XSR04XSR36R295A	Socket to Socket Reversed				Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4		11.61 "	0.968 '	295 mm
JST Sales America Inc. A04XSR04XSR36R254A	Socket to Socket Reversed	254 mm	10 in		Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4	0.833 ft
JST Sales America Inc. A04XSR04XSR36R152B	Socket to Socket	152.4 mm	6 "	0.5 '	Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.28

General part information

4 Position Cable Assembly Rectangular Socket to Socket 0.333' (101.60mm, 4.00")
