A04XSR04XSR36R295A

Active

JST Sales America Inc.

JUMPER HARNESS

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER HARNESS

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Length	Length	Length	Contact Finish	Cable Termination	Color	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A04XSR04XSR36R152A	Socket to Socket Reversed	152.4 mm	6 "	0.5 '	Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4
JST Sales America Inc. A04XSR04XSR36R51A	Socket to Socket Reversed	50.8 mm	2 "		Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4	0.167 '
JST Sales America Inc. A04XSR04XSR36R102B	Socket to Socket				Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A04XSR04XSR36R102A	Socket to Socket Reversed				Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A04XSR04XSR36R295B	Socket to Socket				Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4		11.61 "	0.968 '	295 mm
JST Sales America Inc. A04XSR04XSR36R51B	Socket to Socket	50.8 mm	2 "		Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4	0.167 '
JST Sales America Inc. A04XSR04XSR36R203B	Socket to Socket	203.2 mm	8 in		Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4	0.667 ft
JST Sales America Inc. A04XSR04XSR36R295A	Socket to Socket Reversed				Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4		11.61 "	0.968 '	295 mm
JST Sales America Inc. A04XSR04XSR36R254A	Socket to Socket Reversed	254 mm	10 in		Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4	0.833 ft
JST Sales America Inc. A04XSR04XSR36R152B	Socket to Socket	152.4 mm	6 "	0.5 '	Tin	IDC	Individual Red	1	0.024 "	0.6 mm	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

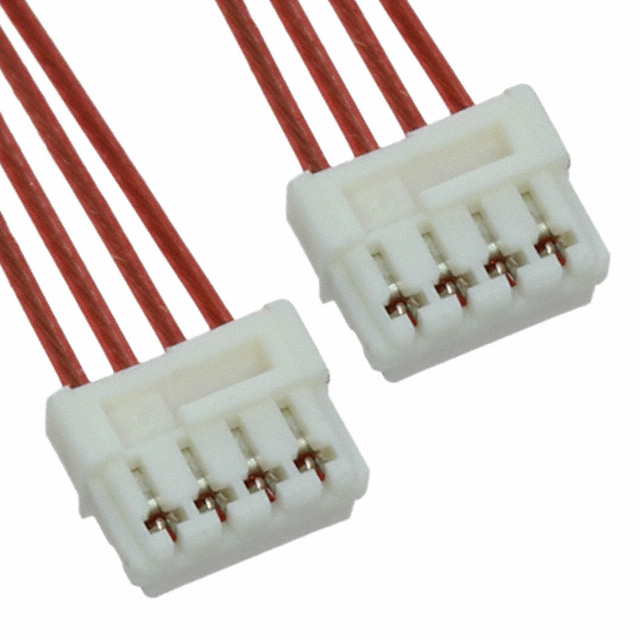

4 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.968' (295.00mm, 11.61")
