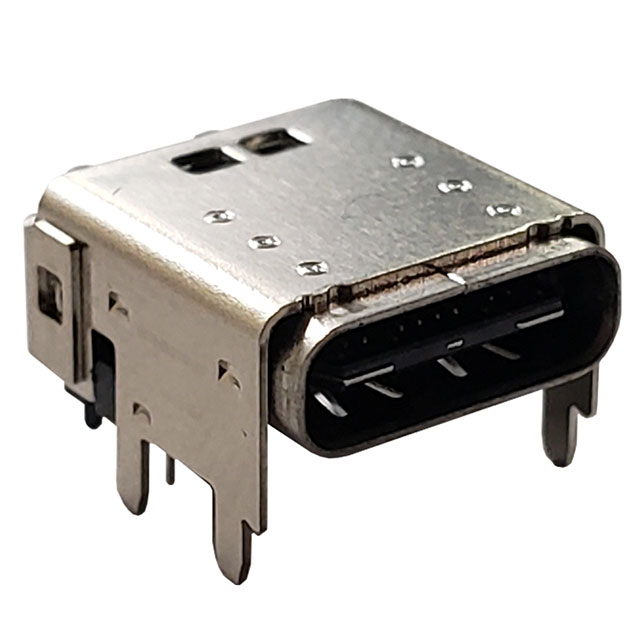

USB-C40-S-RA-BK-30-TR
ActiveAdam Tech
CONN RCPT USB4.0 R/A THRU-HOLE
Deep-Dive with AI
Search across all available documentation for this part.
USB-C40-S-RA-BK-30-TR
ActiveAdam Tech
CONN RCPT USB4.0 R/A THRU-HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-C40-S-RA-BK-30-TR |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 7 A |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 4.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.87 | |
| 10 | $ 3.73 | |||
| 25 | $ 3.36 | |||
| 50 | $ 3.11 | |||
| 100 | $ 2.89 | |||
| Tape & Reel (TR) | 450 | $ 2.46 | ||
| 900 | $ 2.30 | |||
| 1350 | $ 2.21 | |||
| 2250 | $ 2.10 | |||
| 3150 | $ 2.04 | |||
| 4500 | $ 2.00 | |||
Description
General part information
USB-C40 Series
USB-C (USB TYPE-C) USB 4.0 Receptacle Connector 24 Position Through Hole, Right Angle
