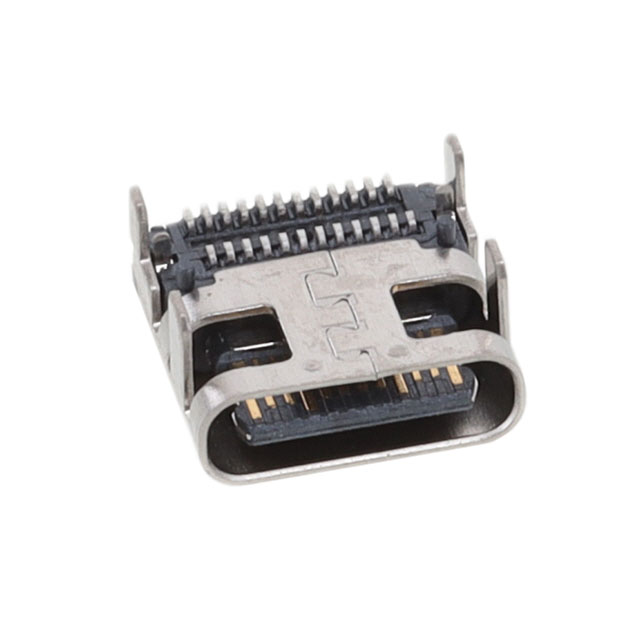

USB-C40-S-RA-CS1-SMT-BK-30-T/R
ActiveAdam Tech
CONN RCPT USB4.0 R/A SMT
Deep-Dive with AI
Search across all available documentation for this part.
USB-C40-S-RA-CS1-SMT-BK-30-T/R
ActiveAdam Tech
CONN RCPT USB4.0 R/A SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-C40-S-RA-CS1-SMT-BK-30-T/R |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A, 1.25 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 4.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.82 | |
| 10 | $ 2.92 | |||
| 25 | $ 2.64 | |||
| 50 | $ 2.44 | |||
| 100 | $ 2.27 | |||
| 250 | $ 2.26 | |||
| Digi-Reel® | 1 | $ 3.82 | ||
| 10 | $ 2.92 | |||
| 25 | $ 2.64 | |||
| 50 | $ 2.44 | |||
| 100 | $ 2.27 | |||
| 250 | $ 2.26 | |||
| Tape & Reel (TR) | 700 | $ 2.26 | ||
Description
General part information
USB-C40 Series
USB-C (USB TYPE-C) USB 4.0 Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
