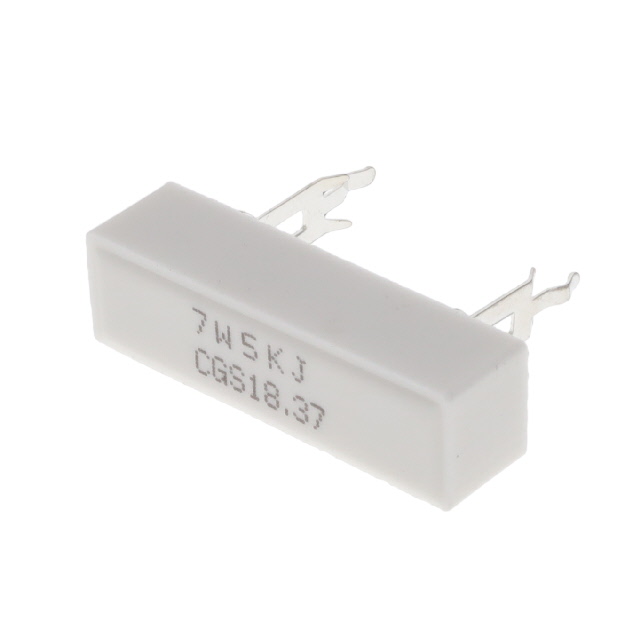

SQZR75K0J

Active

TE Connectivity Passive Product

RES 5K OHM 5% 7W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 5K OHM 5% 7W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SQZR75K0J

Composition	Metal Film
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	7 W
Resistance	5 kOhms
Size / Dimension [x]	36 mm
Size / Dimension [x]	1.417 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Temperature Coefficient	Number of Terminations	Package / Case	Composition	Features	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
TE Connectivity Passive Product SQZR715KJ	11 mm	0.433 in	7 W	-55 °C	250 °C	5 %	300 ppm/°C	2	Radial	Metal Film	Flame Proof Moisture Resistant Safety	15 kOhms	48 mm	10 mm	1.89 in	0.394 in
TE Connectivity Passive Product SQZR75K0J	11 mm	0.433 in	7 W	-55 °C	250 °C	5 %	300 ppm/°C	2	Radial	Metal Film	Flame Proof Moisture Resistant Safety	5 kOhms	36 mm	10 mm	1.417 in	0.394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 kOhms ±5% 7W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Metal Film
