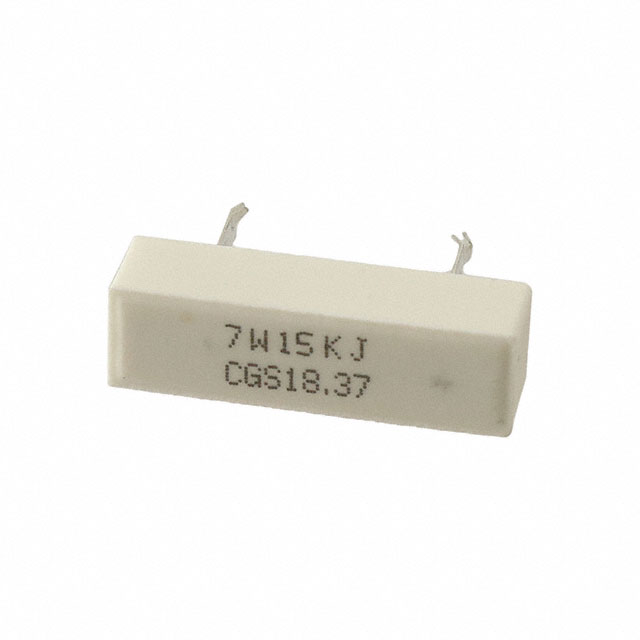

SQZR715KJ

Active

TE Connectivity Passive Product

RES 15K OHM 5% 7W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 15K OHM 5% 7W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SQZR715KJ

Composition	Metal Film
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	7 W
Resistance	15 kOhms
Size / Dimension [x]	48 mm
Size / Dimension [x]	1.89 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Temperature Coefficient	Number of Terminations	Package / Case	Composition	Features	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
TE Connectivity Passive Product SQZR715KJ	11 mm	0.433 in	7 W	-55 °C	250 °C	5 %	300 ppm/°C	2	Radial	Metal Film	Flame Proof Moisture Resistant Safety	15 kOhms	48 mm	10 mm	1.89 in	0.394 in
TE Connectivity Passive Product SQZR75K0J	11 mm	0.433 in	7 W	-55 °C	250 °C	5 %	300 ppm/°C	2	Radial	Metal Film	Flame Proof Moisture Resistant Safety	5 kOhms	36 mm	10 mm	1.417 in	0.394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 kOhms ±5% 7W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Metal Film
