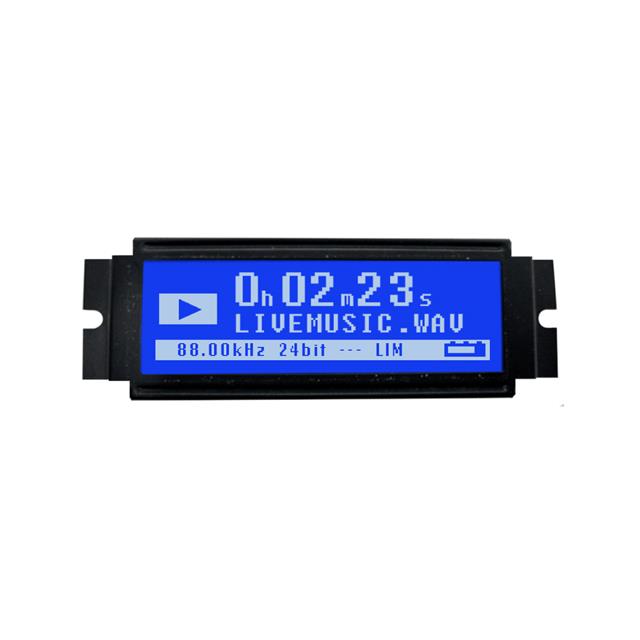

NHD-12232KZ-NSW-BBW-P

Active

Newhaven Display Intl

LCD MOD GRAPH 122X32 WH TRANSM

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD GRAPH 122X32 WH TRANSM

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Dot Size [y]	Dot Size [x]	Viewing Area [z]	Viewing Area [y]	Display Type	Backlight	Dot Pitch [y]	Dot Pitch [x]	Display Mode	Viewing Area [x]	Controller Type
Newhaven Display Intl NHD-12232DZ-FSPG-GBW	Parallel 8-Bit	0.4 mm	0.36 mm	18.3 mm	59.2 mm	STN - Super-Twisted Nematic	LED - Green	0.44 mm	0.4 mm	Transflective
Newhaven Display Intl NHD-12232DZ-FSW-GBW	Parallel 8-Bit	0.4 mm	0.36 mm	18.3 mm	59.2 mm	STN - Super-Twisted Nematic	LED - White	0.44 mm	0.4 mm	Transflective
Newhaven Display Intl NHD-12232WG-EYYH-V#A	Parallel 8-Bit	0.45 mm	0.4 mm		18 mm	STN - Super-Twisted Nematic		0.44 mm	0.49 mm	Transflective	60 mm	SED-1520
Newhaven Display Intl NHD-12232KZ-NSW-BBW-P	Parallel 8-Bit	0.45 mm	0.4 mm		18.5 mm	STN - Super-Twisted Nematic	LED - White	0.49 mm	0.44 mm	Transmissive	60.5 mm	SBN1661G_M02
Newhaven Display Intl NHD-12232AZ-FSW-GBW	Parallel 8-Bit	0.45 mm	0.4 mm		17.9 mm	STN - Super-Twisted Nematic	LED - White	0.44 mm	0.49 mm	Transflective	64 mm	SBN1661G_M02
Newhaven Display Intl NHD-12232DZ-FSY-GBW	Parallel 8-Bit	0.4 mm	0.36 mm	18.3 mm	59.2 mm	STN - Super-Twisted Nematic		0.44 mm	0.4 mm	Transflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive STN - Super-Twisted Nematic Parallel, 8-Bit 122 x 32
