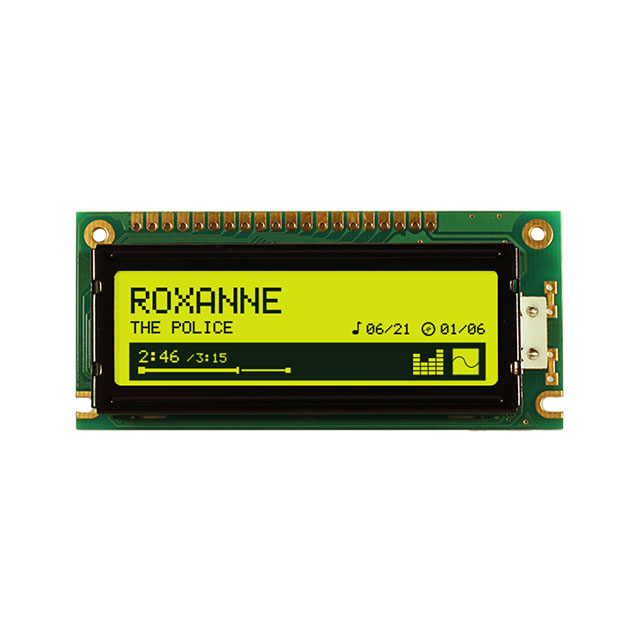

NHD-12232WG-EYYH-V#A

Active

Newhaven Display Intl

LCD MOD GRAPH 122X32 Y/G TRANSFL

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD GRAPH 122X32 Y/G TRANSFL

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Dot Size [y]	Dot Size [x]	Viewing Area [z]	Viewing Area [y]	Display Type	Backlight	Dot Pitch [y]	Dot Pitch [x]	Display Mode	Viewing Area [x]	Controller Type
Newhaven Display Intl NHD-12232DZ-FSPG-GBW	Parallel 8-Bit	0.4 mm	0.36 mm	18.3 mm	59.2 mm	STN - Super-Twisted Nematic	LED - Green	0.44 mm	0.4 mm	Transflective
Newhaven Display Intl NHD-12232DZ-FSW-GBW	Parallel 8-Bit	0.4 mm	0.36 mm	18.3 mm	59.2 mm	STN - Super-Twisted Nematic	LED - White	0.44 mm	0.4 mm	Transflective
Newhaven Display Intl NHD-12232WG-EYYH-V#A	Parallel 8-Bit	0.45 mm	0.4 mm		18 mm	STN - Super-Twisted Nematic		0.44 mm	0.49 mm	Transflective	60 mm	SED-1520
Newhaven Display Intl NHD-12232KZ-NSW-BBW-P	Parallel 8-Bit	0.45 mm	0.4 mm		18.5 mm	STN - Super-Twisted Nematic	LED - White	0.49 mm	0.44 mm	Transmissive	60.5 mm	SBN1661G_M02
Newhaven Display Intl NHD-12232AZ-FSW-GBW	Parallel 8-Bit	0.45 mm	0.4 mm		17.9 mm	STN - Super-Twisted Nematic	LED - White	0.44 mm	0.49 mm	Transflective	64 mm	SBN1661G_M02
Newhaven Display Intl NHD-12232DZ-FSY-GBW	Parallel 8-Bit	0.4 mm	0.36 mm	18.3 mm	59.2 mm	STN - Super-Twisted Nematic		0.44 mm	0.4 mm	Transflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.04

General part information

Graphic LCD Display Module Transflective STN - Super-Twisted Nematic Parallel, 8-Bit 122 x 32
