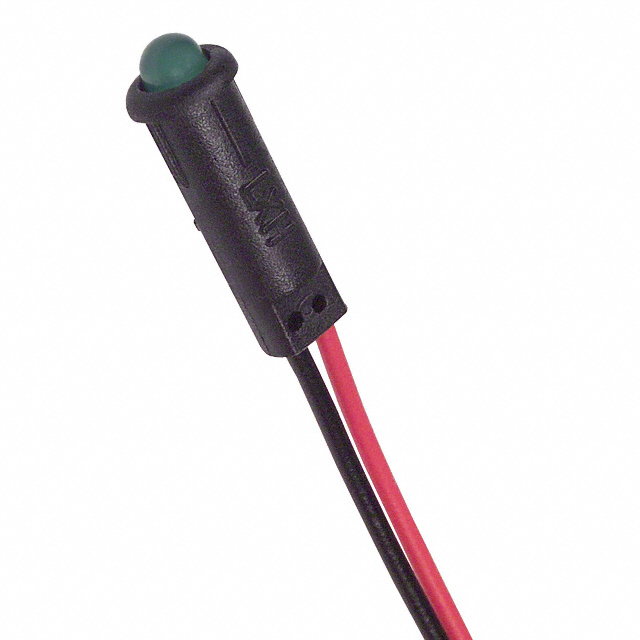

SSI-LXH312GD-150

Active

Lumex Opto/Components Inc.

LED 3MM GREEN 6"LDS PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM GREEN 6"LDS PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Lens Color	Panel Cutout Dimensions	Current	Type	Panel Cutout Shape	Lens Style	Wavelength - Peak	Voltage	Lamp Color	Termination Style	Millicandela Rating	Viewing Angle	Lens Size	Lens Size	Panel Cutout Dimensions	Termination Style	Termination Style
Lumex Opto/Components Inc. SSI-LXH312ID-300	Diffused	Red	0.17 in 4.42 mm	30 mA	LED	Round	Round with Domed Top	635 nm	2 V	Red	Wire Leads - 12" (304.80mm)	30 mcd	60 °	3 mm	T-1
Lumex Opto/Components Inc. SSI-LXH312ID-150	Diffused	Red	4.32 mm	30 mA	LED	Round	Round with Domed Top	635 nm	2 V	Red		30 mcd	60 °	3 mm	T-1	0.17 in
Lumex Opto/Components Inc. SSI-LXH312GD-150	Diffused	Green	4.32 mm	25 mA	LED	Round	Round with Domed Top	565 nm	2.1 V	Green		30 mcd	60 °	3 mm	T-1	0.17 in
Lumex Opto/Components Inc. SSI-LXH312ID	Diffused	Red	4.32 mm	30 mA	LED	Round	Round with Domed Top	635 nm	2 V	Red	PC Pin	30 mcd	60 °	3 mm	T-1	0.17 in
Lumex Opto/Components Inc. SSI-LXH312GD-250	Diffused	Green	4.32 mm		LED	Round	Round with Domed Top	565 nm	2.2 V	Green	Wire Leads	30 mcd	60 °	3 mm	T-1	0.17 in	9.9 in	251.46 mm
Lumex Opto/Components Inc. SSI-LXH312USBD-150	Diffused	Blue	8.13 mm		LED	Round	Round with Domed Top		3.5 V	Blue		60 mcd	60 °	3 mm	T-1	0.32 in
Lumex Opto/Components Inc. SSI-LXH312GD-430	Diffused	Green	4.32 mm		LED	Round	Round with Domed Top	565 nm	2.1 V	Green	Wire Leads - 17" (431.80mm)	30 mcd	60 °	3 mm	T-1	0.17 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Diffused 60° 2.1V 25mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
