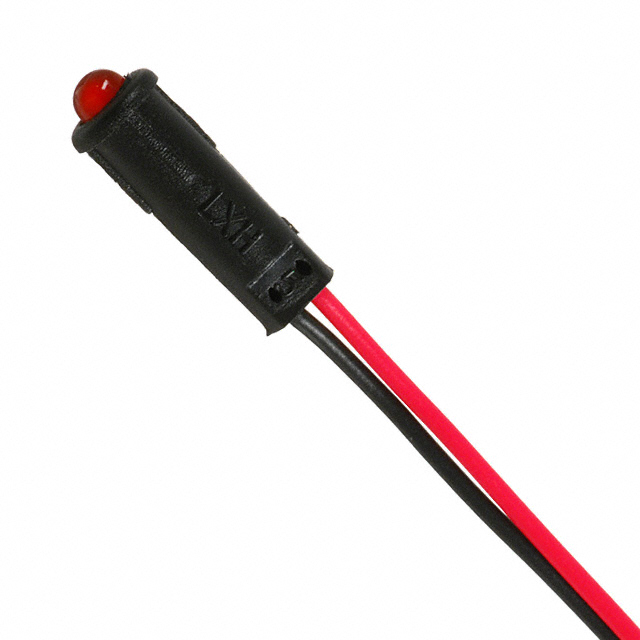

SSI-LXH312ID-150

Active

Lumex Opto/Components Inc.

LED 3MM HI-I RED DIFF6"LDS PNLMT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM HI-I RED DIFF6"LDS PNLMT

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Lens Color	Panel Cutout Dimensions	Current	Type	Panel Cutout Shape	Lens Style	Wavelength - Peak	Voltage	Lamp Color	Termination Style	Millicandela Rating	Viewing Angle	Lens Size	Lens Size	Panel Cutout Dimensions	Termination Style	Termination Style
Lumex Opto/Components Inc. SSI-LXH312ID-300	Diffused	Red	0.17 in 4.42 mm	30 mA	LED	Round	Round with Domed Top	635 nm	2 V	Red	Wire Leads - 12" (304.80mm)	30 mcd	60 °	3 mm	T-1
Lumex Opto/Components Inc. SSI-LXH312ID-150	Diffused	Red	4.32 mm	30 mA	LED	Round	Round with Domed Top	635 nm	2 V	Red		30 mcd	60 °	3 mm	T-1	0.17 in
Lumex Opto/Components Inc. SSI-LXH312GD-150	Diffused	Green	4.32 mm	25 mA	LED	Round	Round with Domed Top	565 nm	2.1 V	Green		30 mcd	60 °	3 mm	T-1	0.17 in
Lumex Opto/Components Inc. SSI-LXH312ID	Diffused	Red	4.32 mm	30 mA	LED	Round	Round with Domed Top	635 nm	2 V	Red	PC Pin	30 mcd	60 °	3 mm	T-1	0.17 in
Lumex Opto/Components Inc. SSI-LXH312GD-250	Diffused	Green	4.32 mm		LED	Round	Round with Domed Top	565 nm	2.2 V	Green	Wire Leads	30 mcd	60 °	3 mm	T-1	0.17 in	9.9 in	251.46 mm
Lumex Opto/Components Inc. SSI-LXH312USBD-150	Diffused	Blue	8.13 mm		LED	Round	Round with Domed Top		3.5 V	Blue		60 mcd	60 °	3 mm	T-1	0.32 in
Lumex Opto/Components Inc. SSI-LXH312GD-430	Diffused	Green	4.32 mm		LED	Round	Round with Domed Top	565 nm	2.1 V	Green	Wire Leads - 17" (431.80mm)	30 mcd	60 °	3 mm	T-1	0.17 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
