LQM2HPZ2R2MJ0L

Active

Murata Power Solutions Inc.

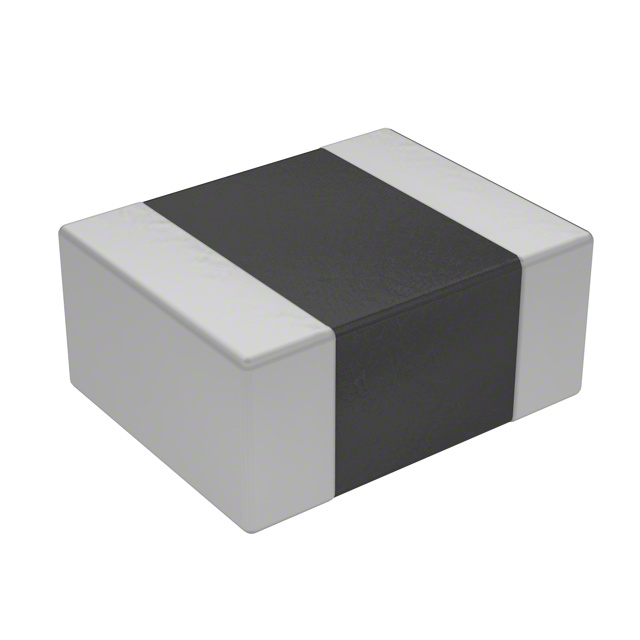

FIXED IND 2.2UH 1A 120 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQM2HPZ2R2MJ0L

Active

Murata Power Solutions Inc.

FIXED IND 2.2UH 1A 120 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQM2HPZ2R2MJ0L

Current Rating (Amps)	1 A
DC Resistance (DCR)	120 mOhm
Frequency - Self Resonant	40 MHz
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Inductance	2.2 µH
Inductance Frequency - Test	100 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1008
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	2520
Supplier Device Package	1008
Tolerance	20 %
Type	Multilayer

LQM2HPZ Series

Part	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Inductance Frequency - Test	Current Rating (Amps)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Package / Case	Tolerance	Shielding	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Frequency - Self Resonant	Material - Core	Supplier Device Package	Supplier Device Package
Murata Power Solutions Inc. LQM2HPZ2R2MG0L	80 mOhm	0.039 "	1 mm	2520	1 MHz	1.3 A	Multilayer	-55 °C	125 °C	2.2 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	40 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ1R0MG0L	55 mOhm	0.039 "	1 mm	2520	1 MHz	1.6 A	Multilayer	-55 °C	125 °C	1 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	60 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZR56ME0L
Murata Power Solutions Inc. LQM2HPZ2R2MJ0L	120 mOhm	0.047 in	1.2 mm		100 MHz	1 A	Multilayer	-55 °C	125 °C	2.2 µH	1008	20 %	Shielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	40 MHz	Ferrite	2520	1008
Murata Power Solutions Inc. LQM2HPZ3R3MG0L	100 mOhm	0.039 "	1 mm	2520	1 MHz	1.2 A	Multilayer	-55 °C	125 °C	3.3 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	30 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ2R2MGSL	180 mOhm	0.039 "	1 mm	2520	1 MHz	1.1 A	Multilayer	-55 °C	125 °C	2.2 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	40 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ3R3MGSL	210 mOhm	0.039 "	1 mm	2520	1 MHz	1.05 A	Multilayer	-55 °C	125 °C	3.3 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	20 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ1R5MG0L	70 mOhm	0.039 "	1 mm	2520	1 MHz	1.5 A	Multilayer	-55 °C	125 °C	1.5 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	50 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ4R7MGCL	180 mOhm	0.039 "	1 mm	2520	1 MHz	800 mA	Multilayer	-55 °C	125 °C	4.7 ÁH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	25 MHz	Ferrite
