LQM2HPZR56ME0L

Active

Murata Power Solutions Inc.

FIXED IND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

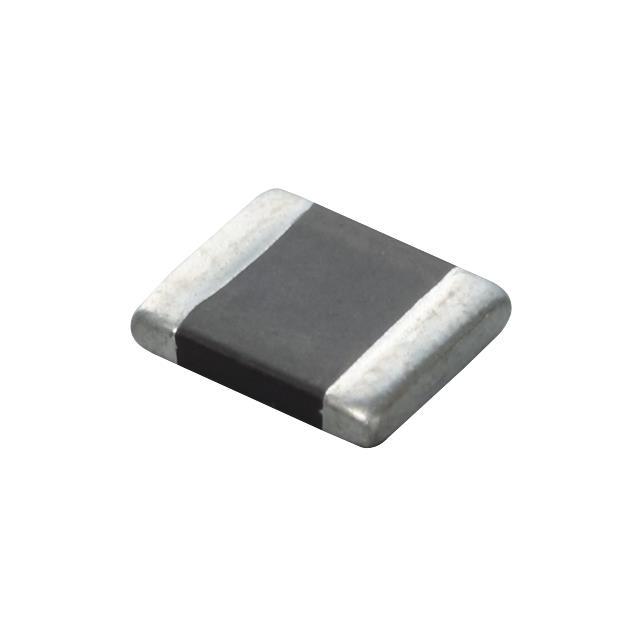

LQM2HPZR56ME0L

Active

Murata Power Solutions Inc.

FIXED IND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQM2HPZR56ME0L

null

LQM2HPZ Series

Part	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Inductance Frequency - Test	Current Rating (Amps)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Package / Case	Tolerance	Shielding	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Frequency - Self Resonant	Material - Core	Supplier Device Package	Supplier Device Package
Murata Power Solutions Inc. LQM2HPZ2R2MG0L	80 mOhm	0.039 "	1 mm	2520	1 MHz	1.3 A	Multilayer	-55 °C	125 °C	2.2 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	40 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ1R0MG0L	55 mOhm	0.039 "	1 mm	2520	1 MHz	1.6 A	Multilayer	-55 °C	125 °C	1 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	60 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZR56ME0L
Murata Power Solutions Inc. LQM2HPZ2R2MJ0L	120 mOhm	0.047 in	1.2 mm		100 MHz	1 A	Multilayer	-55 °C	125 °C	2.2 µH	1008	20 %	Shielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	40 MHz	Ferrite	2520	1008
Murata Power Solutions Inc. LQM2HPZ3R3MG0L	100 mOhm	0.039 "	1 mm	2520	1 MHz	1.2 A	Multilayer	-55 °C	125 °C	3.3 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	30 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ2R2MGSL	180 mOhm	0.039 "	1 mm	2520	1 MHz	1.1 A	Multilayer	-55 °C	125 °C	2.2 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	40 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ3R3MGSL	210 mOhm	0.039 "	1 mm	2520	1 MHz	1.05 A	Multilayer	-55 °C	125 °C	3.3 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	20 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ1R5MG0L	70 mOhm	0.039 "	1 mm	2520	1 MHz	1.5 A	Multilayer	-55 °C	125 °C	1.5 µH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	50 MHz	Ferrite
Murata Power Solutions Inc. LQM2HPZ4R7MGCL	180 mOhm	0.039 "	1 mm	2520	1 MHz	800 mA	Multilayer	-55 °C	125 °C	4.7 ÁH	1008	20 %	Unshielded	Surface Mount	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	25 MHz	Ferrite

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.14
