ACJS-MV35-3S

Active

AMPHENOL AUDIO

CONN JACK STEREO 3.5MM

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN JACK STEREO 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	ACJS-MV35-3S

Body Color	Silver, Black
Connector Type	Phone Jack
Contact Material	Copper
Gender	Female
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Includes	Connector, Washer, Nut
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	Single Switch
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Hole Size	5.99 mm
Panel Hole Size	0.236 in
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)
Thread Size	M6x0.5

Part	Contact Material - Plating	Mounting Type	Signal Lines	Voltage - Rated	Contact Material	Termination	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Gender	Body Color	Housing Material	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Connector Type	Shielding	Panel Hole Size	Panel Hole Size	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Includes	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Thread Size	Internal Switch(s)
AMPHENOL AUDIO ACJS-MN-3S	Tin	Panel Mount Through Hole	Stereo	34 V	Brass	Press-Fit Solder	0.374 in	9.5 mm	Female	Black Silver	Glass Filled Nylon 6/6 Polyamide (PA66)	10 A	Mounting Hardware Thread Lock	70 °C	-25 °C	3	3	Phone Jack	Unshielded
AMPHENOL AUDIO ACJS-MHDC		Panel Mount Through Hole	Stereo			Solder			Female	Black	Glass Filled Nylon 6/6 Polyamide (PA66)		Mounting Hardware	70 °C	-25 °C			Dual Phone Jack		0.449 in	11.4 mm	3	12	2
AMPHENOL AUDIO ACJS-MV35-3S			Stereo		Copper	Solder Eyelet(s)			Female	Black Silver	Glass Filled Nylon 6/6 Polyamide (PA66)			70 °C	-25 °C	3	4	Phone Jack	Unshielded	0.236 in	5.99 mm				Connector Nut Washer	0.141 "	0.125 "	3.5 mm	M6x0.5	Single Switch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

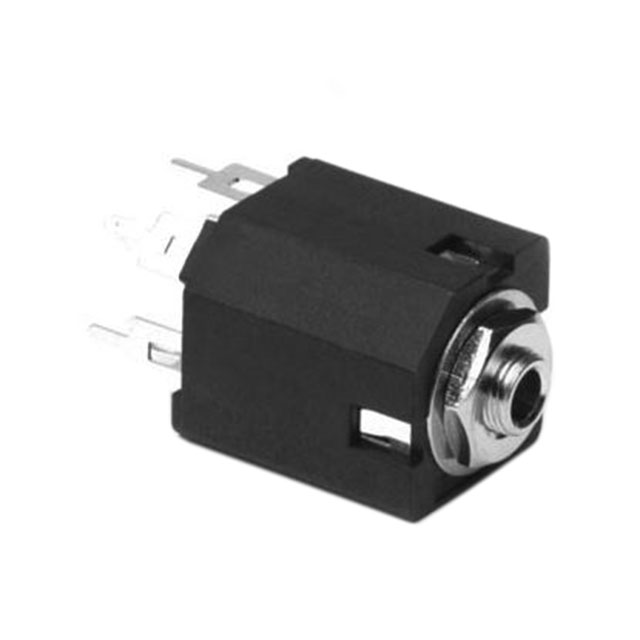

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
