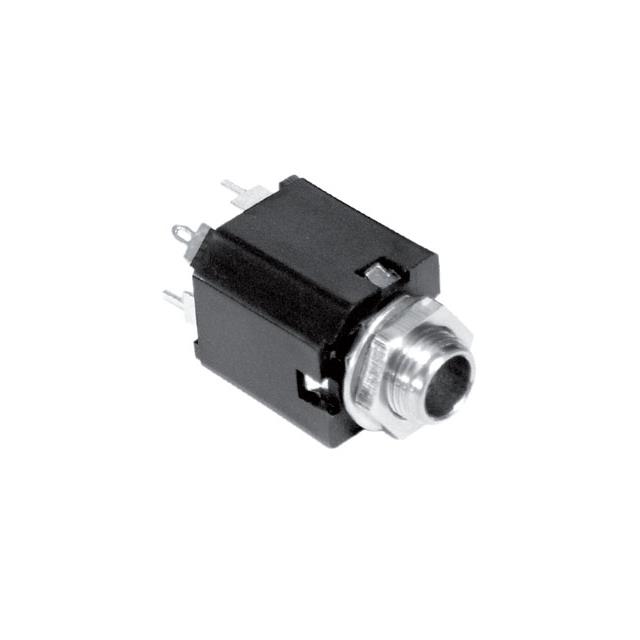

ACJS-MN-3S

Active

AMPHENOL AUDIO

1/4" PHONE STEREO VERTICAL SCHEM

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

1/4" PHONE STEREO VERTICAL SCHEM

Technical Specifications

Parameters and characteristics for this part

Specification	ACJS-MN-3S

Body Color	Silver, Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating	Tin
Current Rating (Amps)	10 A
Features	Thread Lock, Mounting Hardware
Gender	Female
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Internal Switch(s)	False
Mounting Type	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Hole Size [diameter]	0.374 in
Panel Hole Size [diameter]	9.5 mm
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder, Press-Fit
Voltage - Rated	34 V

Part	Contact Material - Plating	Mounting Type	Signal Lines	Voltage - Rated	Contact Material	Termination	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Gender	Body Color	Housing Material	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Connector Type	Shielding	Panel Hole Size	Panel Hole Size	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Includes	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Thread Size	Internal Switch(s)
AMPHENOL AUDIO ACJS-MN-3S	Tin	Panel Mount Through Hole	Stereo	34 V	Brass	Press-Fit Solder	0.374 in	9.5 mm	Female	Black Silver	Glass Filled Nylon 6/6 Polyamide (PA66)	10 A	Mounting Hardware Thread Lock	70 °C	-25 °C	3	3	Phone Jack	Unshielded
AMPHENOL AUDIO ACJS-MHDC		Panel Mount Through Hole	Stereo			Solder			Female	Black	Glass Filled Nylon 6/6 Polyamide (PA66)		Mounting Hardware	70 °C	-25 °C			Dual Phone Jack		0.449 in	11.4 mm	3	12	2
AMPHENOL AUDIO ACJS-MV35-3S			Stereo		Copper	Solder Eyelet(s)			Female	Black Silver	Glass Filled Nylon 6/6 Polyamide (PA66)			70 °C	-25 °C	3	4	Phone Jack	Unshielded	0.236 in	5.99 mm				Connector Nut Washer	0.141 "	0.125 "	3.5 mm	M6x0.5	Single Switch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Press-Fit, Solder
