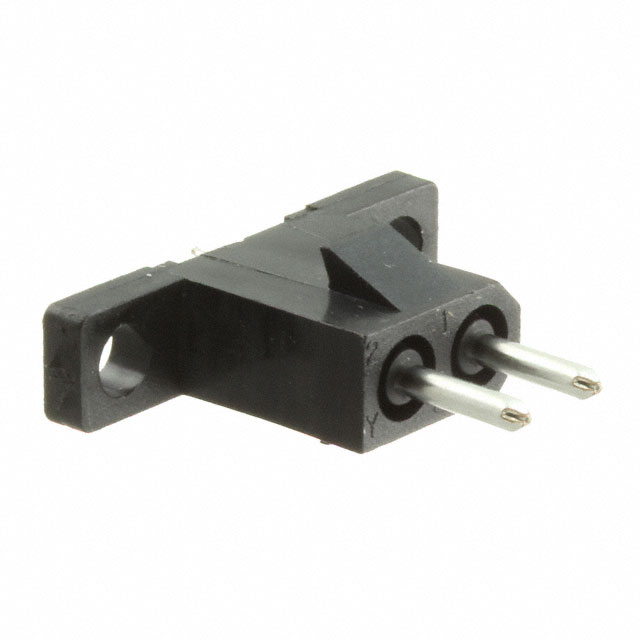

SMS2RE4TR29
ActiveSouriau-Sunbank by Eaton
CONN HEADER VERT 2POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
SMS2RE4TR29
ActiveSouriau-Sunbank by Eaton
CONN HEADER VERT 2POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS2RE4TR29 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 118.1 µin |
| Contact Finish Thickness - Mating | 3 µm |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Mating | 0.28 in |
| Contact Length - Mating | 7.11 mm |
| Contact Length - Post | 0.173 in |
| Contact Length - Post | 4.4 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Locking Ramp |
| Features | Mounting Flange |
| Ingress Protection | IP40 |
| Insulation Color | Black |
| Insulation Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.972 in |
| Overall Contact Length | 24.7 mm |
| Pitch - Mating | 5.08 mm |
| Pitch - Mating | 0.2 in |
| Shrouding | Unshrouded |
| Style | Board to Cable/Wire |
| Termination | Solder |
SMS2RE Series
| Part | Shrouding | Mounting Type | Contact Length - Mating | Contact Length - Mating | Termination | Features | Contact Finish Thickness - Mating | Insulation Color | Number of Positions Loaded | Contact Shape | Fastening Type | Style | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows | Connector Type | Number of Positions | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Insulation Material | Overall Contact Length | Overall Contact Length | Ingress Protection | Contact Finish Thickness - Post | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Unshrouded | Through Hole | 0.28 in | 7.11 mm | Solder | Mounting Flange | Flash | Black | All | Circular | Locking Ramp | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Male Pin | 1 | Header | 2 | 5 A | 0.173 in | 4.4 mm | Gold | 5.08 mm | 0.2 in | UL94 V-0 | Polyester Glass Filled | 0.972 in | 24.7 mm | IP40 | |||||||
Souriau-Sunbank by Eaton | Through Hole | Solder | Mounting Flange | Black | All | Circular | Locking Ramp | Board to Board Cable | Copper Alloy | -55 °C | 105 ░C | Female Socket | 1 | Receptacle | 2 | 5 A | 0.173 in | 4.4 mm | Gold | 5.08 mm | 0.2 in | UL94 V-0 | IP40 | Flash | Gold | 29.5 Áin | 0.75 Ám | ||||||||||
Souriau-Sunbank by Eaton | Unshrouded | Through Hole | 0.28 in | 7.11 mm | Solder | Mounting Flange | Black | All | Circular | Locking Ramp | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Male Pin | 1 | Header | 2 | 5 A | 0.173 in | 4.4 mm | Gold | 5.08 mm | 0.2 in | UL94 V-0 | Polyester Glass Filled | 0.972 in | 24.7 mm | IP40 | Tin | 16 Áin | 0.41 Ám | |||||
Souriau-Sunbank by Eaton | Through Hole | Solder | Mounting Flange | Flash | Black | All | Circular | Locking Ramp | Board to Board Cable | Copper Alloy | -55 °C | 105 ░C | Female Socket | 1 | Receptacle | 2 | 5 A | 0.173 in | 4.4 mm | Gold | 5.08 mm | 0.2 in | UL94 V-0 | IP40 | Flash | Gold | |||||||||||
Souriau-Sunbank by Eaton | Unshrouded | Through Hole | 0.28 in | 7.11 mm | Solder | Mounting Flange | Black | All | Circular | Locking Ramp | Board to Cable/Wire | Copper Alloy | -55 °C | 125 °C | Male Pin | 1 | Header | 2 | 5 A | 0.173 in | 4.4 mm | 5.08 mm | 0.2 in | UL94 V-0 | Polyester Glass Filled | 0.972 in | 24.7 mm | IP40 | Tin | 118.1 µin | 3 µm | 3 µm | 118.1 µin | ||||
Souriau-Sunbank by Eaton | Through Hole | Solder | Mounting Flange | Black | All | Circular | Locking Ramp | Board to Board Cable | Copper Alloy | -55 °C | 105 ░C | Female Socket | 1 | Receptacle | 2 | 5 A | 0.173 in | 4.4 mm | 5.08 mm | 0.2 in | UL94 V-0 | IP40 | Tin | 118.1 µin | 3 µm | 3 µm | 118.1 µin |
