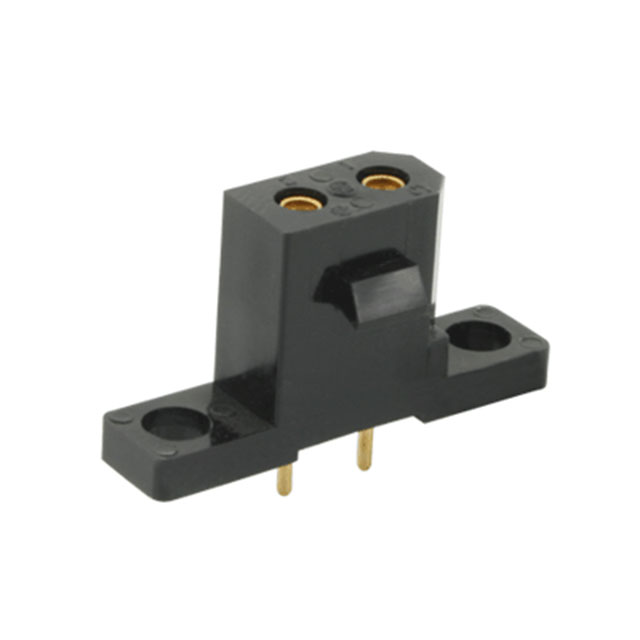

SMS2RE-3S6

Active

Souriau-Sunbank by Eaton

CONN RCPT 2POS 0.2 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

SMS2RE-3S6

Active

Souriau-Sunbank by Eaton

CONN RCPT 2POS 0.2 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMS2RE-3S6

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	IP40
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Style	Board to Board, Cable
Termination	Solder

SMS2RE Series

Part	Shrouding	Mounting Type	Contact Length - Mating	Contact Length - Mating	Termination	Features	Contact Finish Thickness - Mating	Insulation Color	Number of Positions Loaded	Contact Shape	Fastening Type	Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Connector Type	Number of Positions	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Material	Overall Contact Length	Overall Contact Length	Ingress Protection	Contact Finish Thickness - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Souriau-Sunbank by Eaton SMS2RE4D70	Unshrouded	Through Hole	0.28 in	7.11 mm	Solder	Mounting Flange	Flash	Black	All	Circular	Locking Ramp	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Male Pin	1	Header	2	5 A	0.173 in	4.4 mm	Gold	5.08 mm	0.2 in	UL94 V-0	Polyester Glass Filled	0.972 in	24.7 mm	IP40
Souriau-Sunbank by Eaton SMS2RE-3S6		Through Hole			Solder	Mounting Flange		Black	All	Circular	Locking Ramp	Board to Board Cable	Copper Alloy	-55 °C	105 ░C	Female Socket	1	Receptacle	2	5 A	0.173 in	4.4 mm	Gold	5.08 mm	0.2 in	UL94 V-0				IP40	Flash	Gold	29.5 Áin	0.75 Ám
Souriau-Sunbank by Eaton SMS2RE4S6	Unshrouded	Through Hole	0.28 in	7.11 mm	Solder	Mounting Flange		Black	All	Circular	Locking Ramp	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Male Pin	1	Header	2	5 A	0.173 in	4.4 mm	Gold	5.08 mm	0.2 in	UL94 V-0	Polyester Glass Filled	0.972 in	24.7 mm	IP40		Tin	16 Áin	0.41 Ám
Souriau-Sunbank by Eaton SMS2RE3D70		Through Hole			Solder	Mounting Flange	Flash	Black	All	Circular	Locking Ramp	Board to Board Cable	Copper Alloy	-55 °C	105 ░C	Female Socket	1	Receptacle	2	5 A	0.173 in	4.4 mm	Gold	5.08 mm	0.2 in	UL94 V-0				IP40	Flash	Gold
Souriau-Sunbank by Eaton SMS2RE4TR29	Unshrouded	Through Hole	0.28 in	7.11 mm	Solder	Mounting Flange		Black	All	Circular	Locking Ramp	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Male Pin	1	Header	2	5 A	0.173 in	4.4 mm		5.08 mm	0.2 in	UL94 V-0	Polyester Glass Filled	0.972 in	24.7 mm	IP40		Tin		118.1 µin	3 µm	3 µm	118.1 µin
Souriau-Sunbank by Eaton SMS2RE3TR29		Through Hole			Solder	Mounting Flange		Black	All	Circular	Locking Ramp	Board to Board Cable	Copper Alloy	-55 °C	105 ░C	Female Socket	1	Receptacle	2	5 A	0.173 in	4.4 mm		5.08 mm	0.2 in	UL94 V-0				IP40		Tin		118.1 µin	3 µm	3 µm	118.1 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SMS2RE Series

2 Position Receptacle Connector 0.200" (5.08mm) Through Hole Gold
