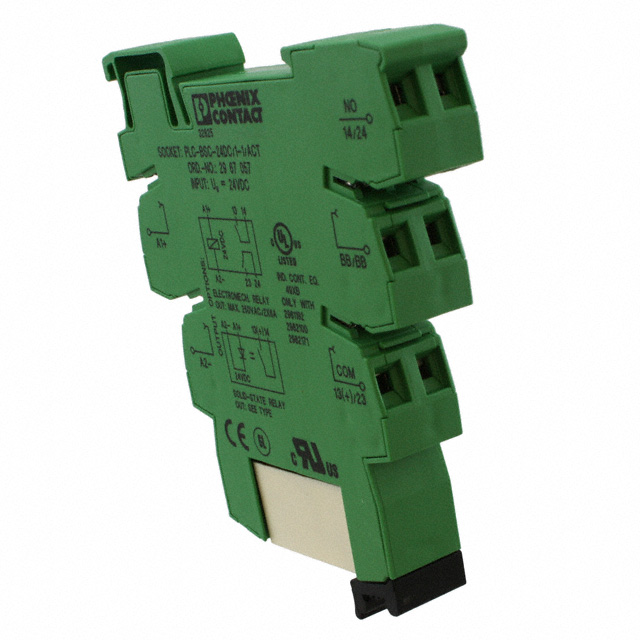

2967109

Active

Phoenix Contact

RELAY GEN PURPOSE DPST 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPST 6A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2967109

Approval Agency	UKCA, CE
Coil Current	18 mA
Coil Resistance	1440 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Contact Material	Coil Resistance	Operate Time	Release Time	Approval Agency	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Features	Mounting Type	Coil Current	Contact Rating (Current)	Termination Style	Switching Voltage	Coil Type	Coil Voltage
Phoenix Contact 2967125	Gold (Au) Silver (Ag)	1333 Ohms	8 ms	10 ms	cULus DNV EAC UL	General Purpose	-40 °C	60 °C	DPDT (2 Form C)	Lighted Indicator Socket Included	DIN Rail	18 mA	50 mA	Screw Terminal	30 VAC 36 VDC	Non Latching	24 VDC
Phoenix Contact 2967109	Silver Nickel (AgNi)	1440 Ohms	8 ms	10 ms	CE UKCA	General Purpose	-25 °C	60 °C	DPST-NO (2 Form A)	Lighted Indicator Socket Included	DIN Rail	18 mA	6 A	Screw Terminal	250 VAC 250 VDC	Non Latching	24 VDC
Phoenix Contact 2967112	Gold (Au) Silver (Ag)	1371 Ohms	8 ms	10 ms	cULus DNV EAC UL	General Purpose	-25 °C	60 °C	DPDT (2 Form C)	Lighted Indicator Socket Included	DIN Rail	17.5 mA	50 mA	Screw Terminal	30 VAC 36 VDC	Non Latching	24 VAC
Phoenix Contact 2967141	Gold (Au) Silver (Ag)	51.1 kOhms	7 ms	10 ms	cULus DNV EAC UL	General Purpose	-25 °C	55 °C	DPDT (2 Form C)	Lighted Indicator Socket Included	DIN Rail	4.5 mA	50 mA	Screw Terminal	30 VAC 36 VDC	Non Latching	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.58

General part information

General Purpose Relay DPST-NO (2 Form A) 24VDC Coil DIN Rail
