Technical Specifications
Parameters and characteristics for this part
| Specification | 2967141 |
|---|---|
| Approval Agency | cULus, DNV, UL, EAC |
| Coil Current | 4.5 mA |
| Coil Resistance | 51.1 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 50 mA |
| Features | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 36 VDC, 30 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 40.75 | |
Description
General part information

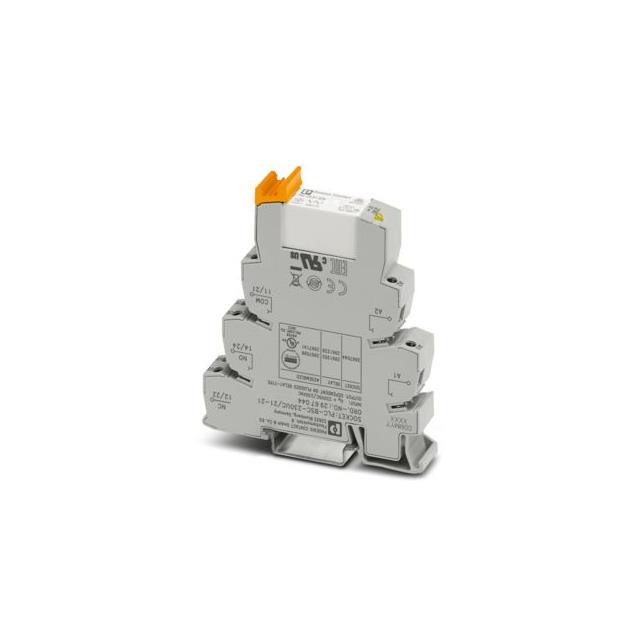

29671 Series
General Purpose Relay DPDT (2 Form C) DIN Rail
