1419A 060500
ActiveBelden Inc.
MULTI-PAIR 4COND 24AWG CHROME
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1419A 060500
ActiveBelden Inc.
MULTI-PAIR 4COND 24AWG CHROME
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1419A 060500 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.248 in |
| Jacket (Insulation) Diameter [diameter] | 6.3 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Chrome |
| Length [x] | 500 ', 100 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 276.24 | |
| 5 | $ 226.01 | |||
| 10 | $ 175.79 | |||
| 25 | $ 150.68 | |||
| 50 | $ 140.63 | |||
| Spool | 500 | $ 1.47 | ||
| 1000 | $ 1.40 | |||
| 1500 | $ 1.35 | |||
| 2500 | $ 1.30 | |||
| 3500 | $ 1.27 | |||
| 5000 | $ 1.24 | |||
Description
General part information
1419A Series

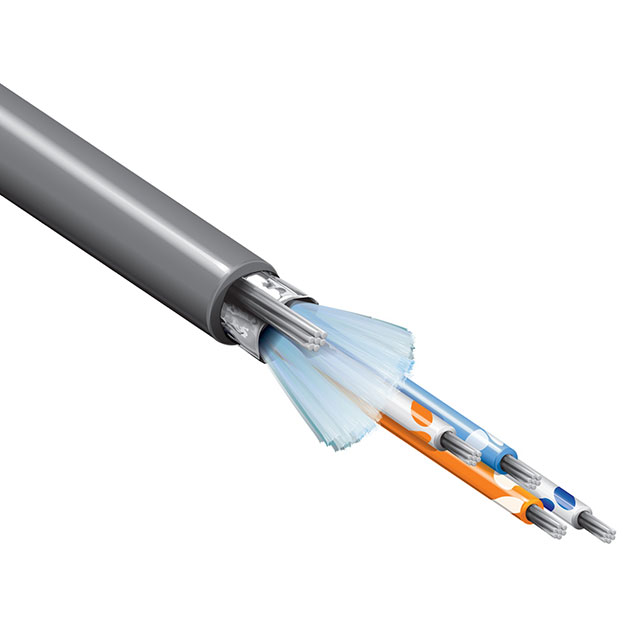

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 500.0' (152.4m)
