Technical Specifications
Parameters and characteristics for this part
| Specification | 1419A 06010000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.248 in |
| Jacket (Insulation) Diameter [diameter] | 6.3 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Chrome |
| Length | 3048 m |
| Length [x] | 10000 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2919 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 10000 | $ 1.33 | |
Description
General part information
1419A Series

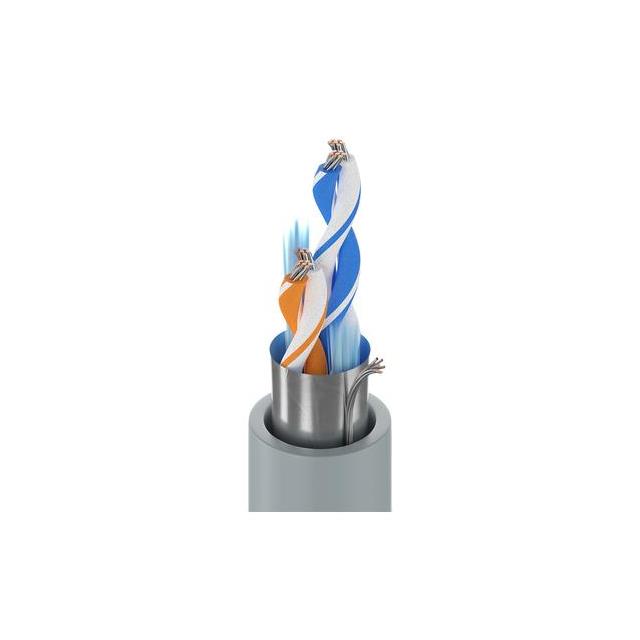

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 10000' (3048.0m)
