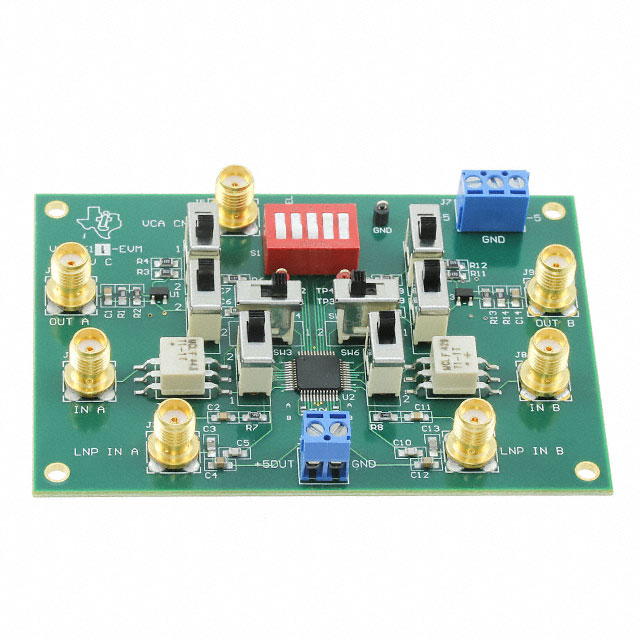

VCA2611EVM

Active

Texas Instruments

VCA2611 SPECIAL PURPOSE AMPLIFIER EVALUATION BOARD

Search across all available documentation for this part.

Active

Texas Instruments

VCA2611 SPECIAL PURPOSE AMPLIFIER EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	VCA2611EVM

-3db Bandwidth	40 MHz
Board Type	Fully Populated
Channels per IC	2 - Dual
Current - Output / Channel [custom]	40 mA
Output Type	Differential
Slew Rate	300 V/µs
Supplied Contents	Board(s)
Utilized IC / Part	VCA2611
Voltage - Supply, Single/Dual (±) [Max]	5.25 V
Voltage - Supply, Single/Dual (±) [Min]	4.75 V

Part	Slew Rate	Mounting Type	Voltage - Supply Span (Min) [Min]	Output Type	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Current - Output / Channel [custom]	Supplier Device Package	-3db Bandwidth	Gain Bandwidth Product	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Circuits	Supplied Contents	Board Type	Channels per IC	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Utilized IC / Part
Texas Instruments VCA2611Y/2K	300 V/µs	Surface Mount	4.75 V	Differential	1 nA	5.25 V	40 mA	48-TQFP (7x7)	40 MHz	80 MHz	85 °C	-40 °C	48-TQFP	2
Texas Instruments VCA2611Y/250	300 V/µs	Surface Mount	4.75 V	Differential	1 nA	5.25 V	40 mA	48-TQFP (7x7)	40 MHz	80 MHz	85 °C	-40 °C	48-TQFP	2
Texas Instruments VCA2611EVM	300 V/µs			Differential			40 mA		40 MHz						Board(s)	Fully Populated	2 - Dual	5.25 V	4.75 V	VCA2611

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 118.80

General part information

VCA2611 2 - Dual Channels per IC Variable Gain Amplifier Evaluation Board

Technical documentation and resources
