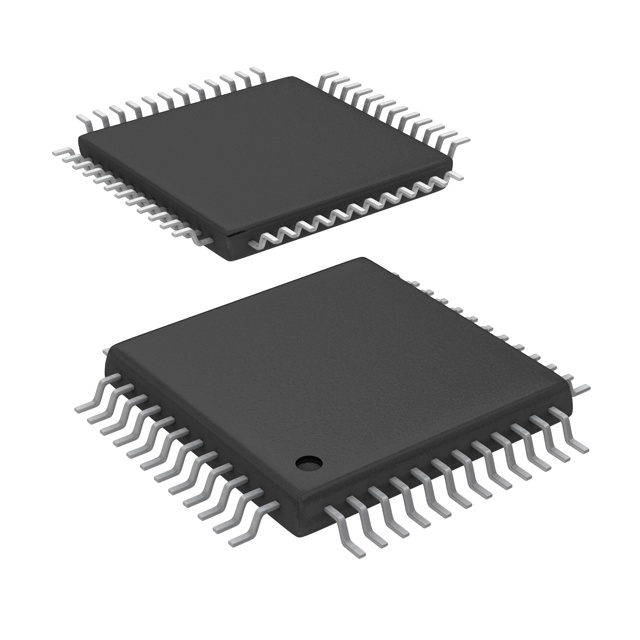

VCA2611Y/250

Obsolete

Texas Instruments

IC VARIABLE GAIN 2 CIRC 48TQFP

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC VARIABLE GAIN 2 CIRC 48TQFP

Technical Specifications

Parameters and characteristics for this part

Specification	VCA2611Y/250

-3db Bandwidth	40 MHz
Current - Input Bias	1 nA
Current - Output / Channel [custom]	40 mA
Gain Bandwidth Product	80 MHz
Mounting Type	Surface Mount
Number of Circuits	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Differential
Package / Case	48-TQFP
Slew Rate	300 V/µs
Supplier Device Package	48-TQFP (7x7)
Voltage - Supply Span (Max) [Max]	5.25 V
Voltage - Supply Span (Min) [Min]	4.75 V

Part	Slew Rate	Mounting Type	Voltage - Supply Span (Min) [Min]	Output Type	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Current - Output / Channel [custom]	Supplier Device Package	-3db Bandwidth	Gain Bandwidth Product	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Circuits	Supplied Contents	Board Type	Channels per IC	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Utilized IC / Part
Texas Instruments VCA2611Y/2K	300 V/µs	Surface Mount	4.75 V	Differential	1 nA	5.25 V	40 mA	48-TQFP (7x7)	40 MHz	80 MHz	85 °C	-40 °C	48-TQFP	2
Texas Instruments VCA2611Y/250	300 V/µs	Surface Mount	4.75 V	Differential	1 nA	5.25 V	40 mA	48-TQFP (7x7)	40 MHz	80 MHz	85 °C	-40 °C	48-TQFP	2
Texas Instruments VCA2611EVM	300 V/µs			Differential			40 mA		40 MHz						Board(s)	Fully Populated	2 - Dual	5.25 V	4.75 V	VCA2611

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Variable Gain Amplifier 2 Circuit Differential 48-TQFP (7x7)

Technical documentation and resources
