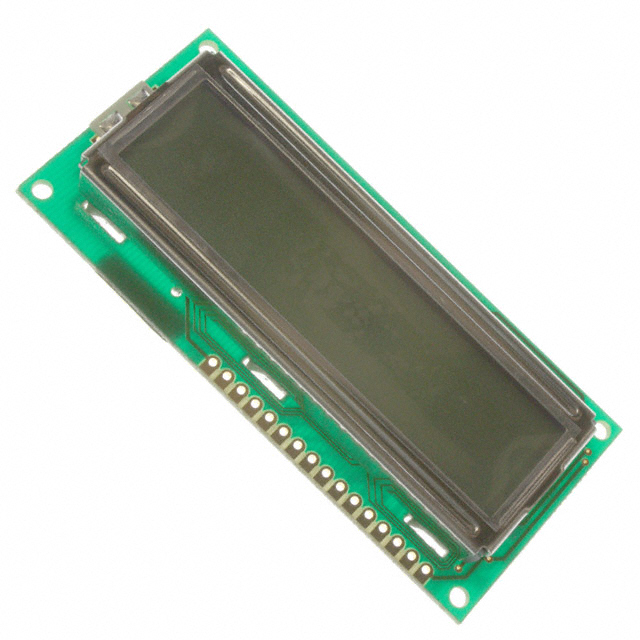

LCM-S01601DSF
ActiveLumex Opto/Components Inc.
LCD MOD 16DIG 16X1 TRANS YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
LCM-S01601DSF
ActiveLumex Opto/Components Inc.
LCD MOD 16DIG 16X1 TRANS YLW/GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCM-S01601DSF |
|---|---|
| Background Color | Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.07 mm |
| Character Size [z] | 6.56 mm |
| Display Format [x] | 16 |
| Display Format [y] | 1 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.75 mm |
| Interface | Parallel |
| Number of Characters | 16 |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 12.7 mm |
| Viewing Area [x] | 66 mm |
| Viewing Area [y] | 16 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.25 | |
| 10 | $ 8.54 | |||
Description
General part information
LCM-S01601 Series
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 80.00mm x 36.00mm x 12.70mm
Documents
Technical documentation and resources
No documents available
