LCM-S01601DSR
ActiveLumex Opto/Components Inc.
LCD MOD 16 DIG 16 X 1 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCM-S01601DSR
ActiveLumex Opto/Components Inc.
LCD MOD 16 DIG 16 X 1 REFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCM-S01601DSR |
|---|---|
| Background Color | Green |
| Backlight | Without Backlight |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.07 mm |
| Character Size [z] | 6.56 mm |
| Display Format [x] | 16 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.75 mm |
| Interface | Parallel |
| Number of Characters | 16 |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 8.8 mm |
| Viewing Area [x] | 66 mm |
| Viewing Area [y] | 16 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.89 | |
| 10 | $ 8.97 | |||
| 135 | $ 7.54 | |||
| 540 | $ 6.92 | |||
| 1080 | $ 6.54 | |||
Description
General part information
LCM-S01601 Series

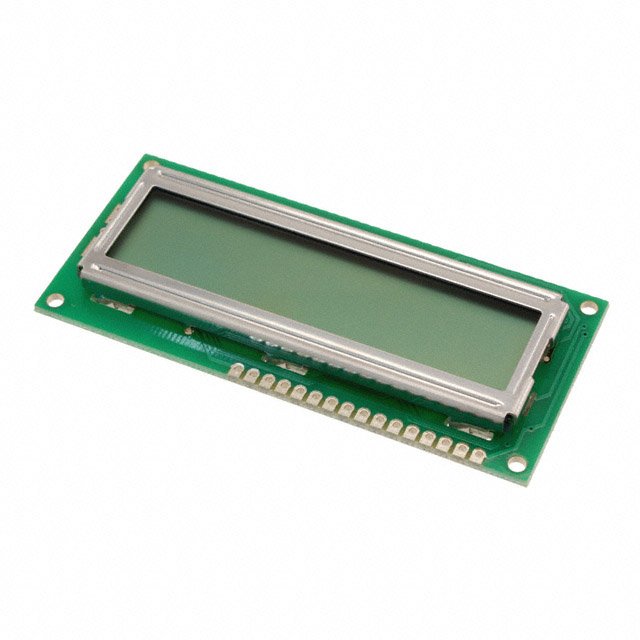

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 80.00mm x 36.00mm x 8.80mm
