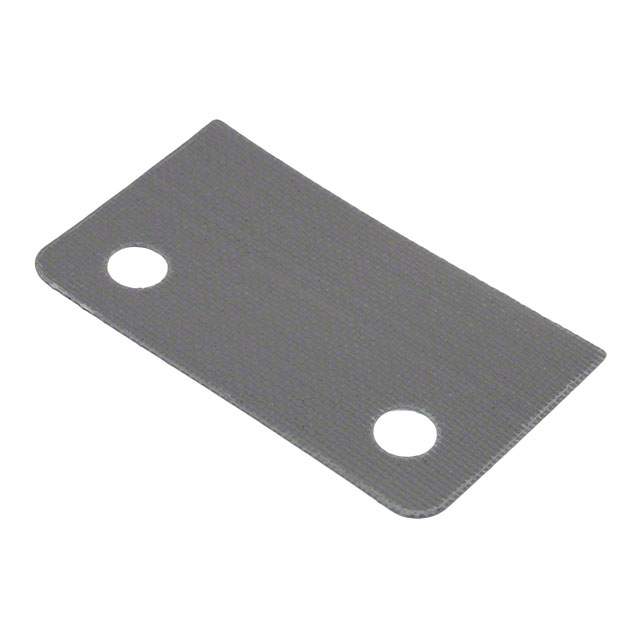

HF115AC-0.0055-AC-105

Active

Bergquist - Henkel

THERM PAD 36.83X21.29MM W/ADH

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 36.83X21.29MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Thermal Conductivity	Adhesive	Shelf Life	Thermal Resistivity	Material	Outline [x]	Outline [y]	Backing, Carrier	Thickness	Thickness	Shape	Color	Usage	Shelf Life Start
Bergquist - Henkel HF115AC-0.0055-AC-90	0.8 W/m-K	Adhesive - One Side	12 Months	0.35 °C/W	Phase Change Compound	21.84 mm	18.79 mm	Fiberglass	0.14 mm	0.0055 in	Rectangular	Gray	TO-218 TO-220 TO-247	Date of Manufacture
Bergquist - Henkel HF115AC-0.0055-AC-105	0.8 W/m-K	Adhesive - One Side	12 Months	0.35 °C/W	Phase Change Compound	36.83 mm	21.29 mm	Fiberglass	0.14 mm	0.0055 in	Rectangular	Gray	SIP	Date of Manufacture
Bergquist - Henkel HF115AC-0.0055-AC-58	0.8 W/m-K	Adhesive - One Side	12 Months	0.35 °C/W	Phase Change Compound	19.05 mm	12.7 mm	Fiberglass	0.14 mm	0.0055 in	Rectangular	Gray	TO-220	Date of Manufacture

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Thermal Pad Gray 36.83mm x 21.29mm Rectangular Adhesive - One Side

Technical documentation and resources
