HF115AC-0.0055-AC-90
ActiveBergquist - Henkel

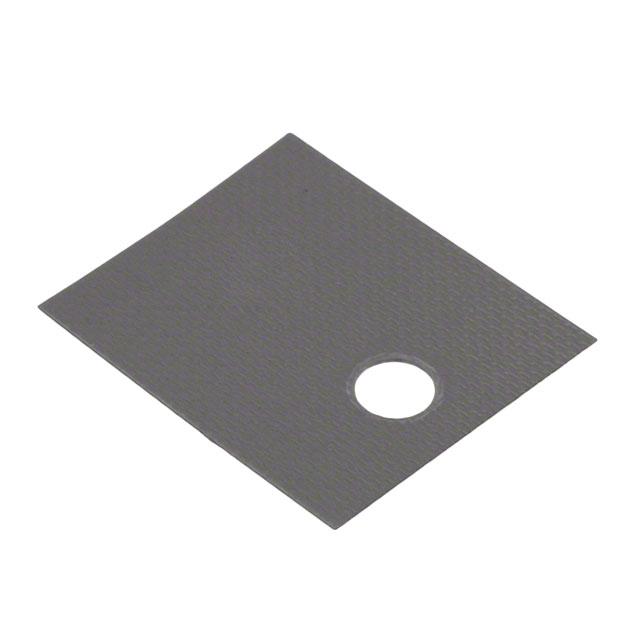

THERM PAD 21.84MMX18.79MM W/ADH
Deep-Dive with AI
Search across all available documentation for this part.
HF115AC-0.0055-AC-90
ActiveBergquist - Henkel
THERM PAD 21.84MMX18.79MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HF115AC-0.0055-AC-90 |
|---|---|
| Adhesive | Adhesive - One Side |
| Backing, Carrier | Fiberglass |
| Color | Gray |
| Material | Phase Change Compound |
| Outline [x] | 21.84 mm |
| Outline [y] | 18.79 mm |
| Shape | Rectangular |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Manufacture |
| Thermal Conductivity | 0.8 W/m-K |
| Thermal Resistivity | 0.35 °C/W |
| Thickness | 0.14 mm |
| Thickness | 0.0055 in |
| Usage | TO-218, TO-220, TO-247 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.19 | |
| 10 | $ 1.96 | |||
| 50 | $ 1.75 | |||
| 100 | $ 1.55 | |||
| 500 | $ 1.35 | |||
| 1000 | $ 1.01 | |||
| 5000 | $ 0.88 | |||
Description
General part information
HF115AC Series
Thermal Pad Gray 21.84mm x 18.79mm Rectangular Adhesive - One Side
Documents
Technical documentation and resources
