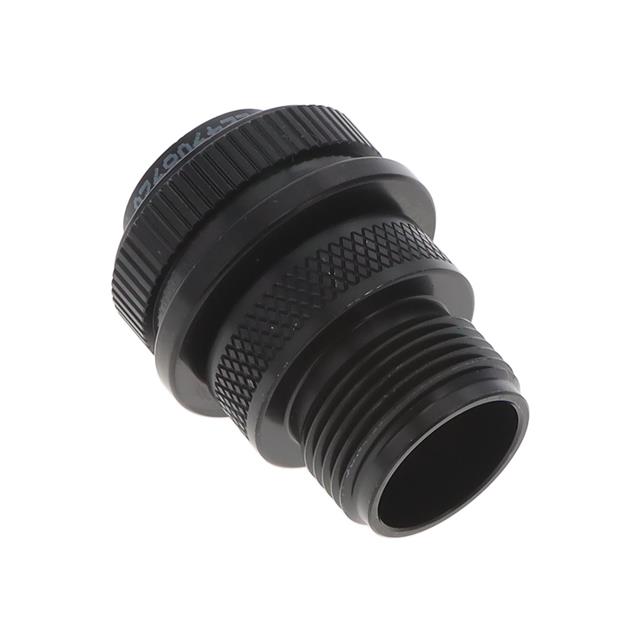

97-3106A14S-2S-621

Active

Amphenol Industrial Operations

CONN PLUG FMALE 4P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3106A14S-2S-621

Active

Amphenol Industrial Operations

CONN PLUG FMALE 4P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3106A14S-2S-621

Applications	Industrial, Automotive
Backshell Material, Plating	Aluminum Alloy, Black Zinc Alloy
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Black Zinc Alloy
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-2
Shielding	Unshielded

97-3106A14 Series

Part	Contact Material	Shell Size - Insert	Color	Applications	Features	Connector Type	Primary Material	Contact Finish - Mating	Number of Positions	Mounting Type	Shell Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Shielding	Shell Finish	Orientation
Amphenol Industrial Operations 97-3106A-14S-6P(946)	Copper Alloy	14S-6	Black	Automotive Industrial	Backshell Coupling Nut	Male Pins Plug	Metal	Silver	6	Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C	Aluminum Alloy Black Zinc Alloy	Unshielded	Black Zinc Alloy	N
Amphenol Industrial Operations 97-3106A-14S-5P	Copper Alloy	14S-5	Olive Drab	Automotive Industrial	Backshell Coupling Nut	Male Pins Plug	Metal	Silver		Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C		Unshielded	Olive Drab Chromate over Cadmium	N
Amphenol Industrial Operations 97-3106A14S-2S-914	Copper Alloy	14S-2	Olive Drab	Automotive Industrial	Backshell Cable Clamp Coupling Nut	Female Sockets Plug	Metal	Silver	4	Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C		Unshielded	Olive Drab Chromate over Cadmium	N
Amphenol Industrial Operations 97-3106A-14S-1P	Copper Alloy	14S-1	Olive Drab	Automotive Industrial	Backshell Coupling Nut	Male Pins Plug	Metal	Silver		Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C		Unshielded	Olive Drab Chromate over Cadmium	N
Amphenol Industrial Operations 97-3106A-14S-2P	Copper Alloy	14S-2	Olive Drab	Automotive Industrial	Backshell Coupling Nut	Male Pins Plug	Metal	Silver	4	Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C		Unshielded	Olive Drab Chromate over Cadmium	N
Amphenol Industrial Operations 97-3106A-14S-2S(946)	Copper Alloy	14S-2	Black	Automotive Industrial	Backshell Coupling Nut	Female Sockets Plug	Metal	Silver	4	Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C	Aluminum Alloy Black Zinc Alloy	Unshielded	Black Zinc Alloy	N
Amphenol Industrial Operations 97-3106A14S-2S-621	Copper Alloy	14S-2	Black	Automotive Industrial	Backshell Coupling Nut	Female Sockets Plug	Metal	Silver	4	Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C	Aluminum Alloy Black Zinc Alloy	Unshielded	Black Zinc Alloy	N
Amphenol Industrial Operations 97-3106A-14S-7S(946)	Copper Alloy	14S-7	Black	Automotive Industrial	Backshell Coupling Nut	Female Sockets Plug	Metal	Silver		Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C	Aluminum Alloy Black Zinc Alloy	Unshielded	Black Zinc Alloy	N
Amphenol Industrial Operations 97-3106A-14S-1S(946)	Copper Alloy	14S-1	Black	Automotive Industrial	Backshell Coupling Nut	Female Sockets Plug	Metal	Silver		Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C	Aluminum Alloy Black Zinc Alloy	Unshielded	Black Zinc Alloy	N
Amphenol Industrial Operations 97-3106A-14S-5S	Copper Alloy	14S-5	Olive Drab	Automotive Industrial	Backshell Coupling Nut	Female Sockets Plug	Metal	Silver		Free Hanging (In-Line)	Aluminum Alloy	Diallyl Phthalate (DAP)	-55 °C	125 °C		Unshielded	Olive Drab Chromate over Cadmium	N

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 22.41

Description

General part information

97-3106A14 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
