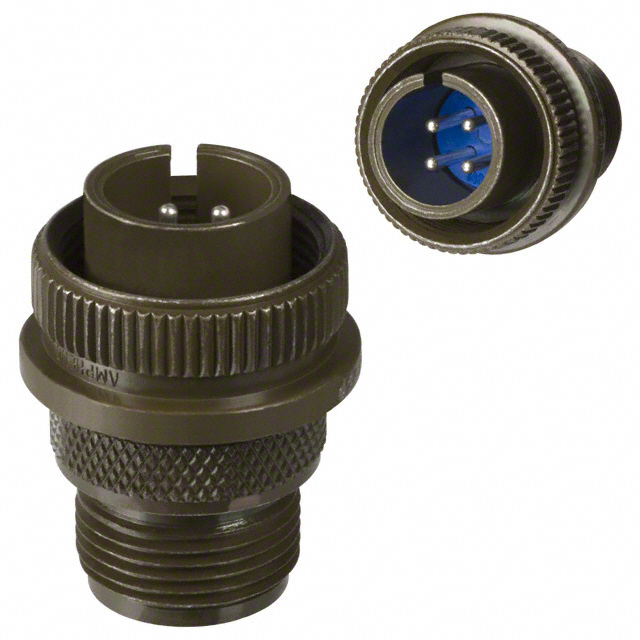

97-3106A-14S-2P
ActiveAmphenol Industrial Operations
CONN PLUG MALE 4P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
97-3106A-14S-2P
ActiveAmphenol Industrial Operations
CONN PLUG MALE 4P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-3106A-14S-2P |
|---|---|
| Applications | Industrial, Automotive |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Coupling Nut, Backshell |
| Insert Material | Diallyl Phthalate (DAP) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-2 |
| Shielding | Unshielded |
97-3106A14 Series
| Part | Contact Material | Shell Size - Insert | Color | Applications | Features | Connector Type | Primary Material | Contact Finish - Mating | Number of Positions | Mounting Type | Shell Material | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Shielding | Shell Finish | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | Copper Alloy | 14S-6 | Black | Automotive Industrial | Backshell Coupling Nut | Male Pins Plug | Metal | Silver | 6 | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Aluminum Alloy Black Zinc Alloy | Unshielded | Black Zinc Alloy | N |
Amphenol Industrial Operations | Copper Alloy | 14S-5 | Olive Drab | Automotive Industrial | Backshell Coupling Nut | Male Pins Plug | Metal | Silver | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Unshielded | Olive Drab Chromate over Cadmium | N | ||
Amphenol Industrial Operations | Copper Alloy | 14S-2 | Olive Drab | Automotive Industrial | Backshell Cable Clamp Coupling Nut | Female Sockets Plug | Metal | Silver | 4 | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Unshielded | Olive Drab Chromate over Cadmium | N | |
Amphenol Industrial Operations | Copper Alloy | 14S-1 | Olive Drab | Automotive Industrial | Backshell Coupling Nut | Male Pins Plug | Metal | Silver | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Unshielded | Olive Drab Chromate over Cadmium | N | ||
Amphenol Industrial Operations | Copper Alloy | 14S-2 | Olive Drab | Automotive Industrial | Backshell Coupling Nut | Male Pins Plug | Metal | Silver | 4 | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Unshielded | Olive Drab Chromate over Cadmium | N | |
Amphenol Industrial Operations | Copper Alloy | 14S-2 | Black | Automotive Industrial | Backshell Coupling Nut | Female Sockets Plug | Metal | Silver | 4 | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Aluminum Alloy Black Zinc Alloy | Unshielded | Black Zinc Alloy | N |
Amphenol Industrial Operations | Copper Alloy | 14S-2 | Black | Automotive Industrial | Backshell Coupling Nut | Female Sockets Plug | Metal | Silver | 4 | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Aluminum Alloy Black Zinc Alloy | Unshielded | Black Zinc Alloy | N |
Amphenol Industrial Operations | Copper Alloy | 14S-7 | Black | Automotive Industrial | Backshell Coupling Nut | Female Sockets Plug | Metal | Silver | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Aluminum Alloy Black Zinc Alloy | Unshielded | Black Zinc Alloy | N | |
Amphenol Industrial Operations | Copper Alloy | 14S-1 | Black | Automotive Industrial | Backshell Coupling Nut | Female Sockets Plug | Metal | Silver | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Aluminum Alloy Black Zinc Alloy | Unshielded | Black Zinc Alloy | N | |
Amphenol Industrial Operations | Copper Alloy | 14S-5 | Olive Drab | Automotive Industrial | Backshell Coupling Nut | Female Sockets Plug | Metal | Silver | Free Hanging (In-Line) | Aluminum Alloy | Diallyl Phthalate (DAP) | -55 °C | 125 °C | Unshielded | Olive Drab Chromate over Cadmium | N |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.13 | |
| 10 | $ 16.75 | |||
| 25 | $ 16.03 | |||
| 50 | $ 15.51 | |||
| 100 | $ 15.00 | |||
| 250 | $ 14.17 | |||
| 500 | $ 13.76 | |||
Description
General part information
97-3106A14 Series
4 Position Circular Connector Plug, Male Pins Solder Cup
