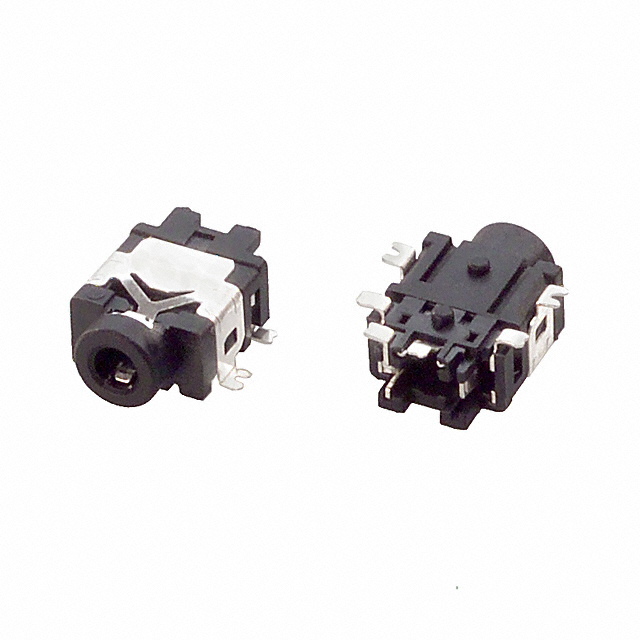

SJ1-42535RS-SMT-TR

Obsolete

CUI Devices

CONN JACK 4COND 2.5MM SMD R/A

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN JACK 4COND 2.5MM SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SJ1-42535RS-SMT-TR

Actual Diameter [diameter]	2.6 mm
Actual Diameter [diameter]	0.102 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	300 mA
Features	Board Guide
Gender	Female
Housing Material	Polyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter	0.094 in
Industry Recognized Mating Diameter	2.5 mm
Industry Recognized Mating Diameter	3 /32"
Internal Switch(s)	Single Switch
Mounting Type	Surface Mount, Right Angle
Number of Positions/Contacts [custom]	5
Number of Positions/Contacts [custom]	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	16 V

Part	Shielding	Signal Lines	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Current Rating (Amps)	Gender	Body Color	Voltage - Rated	Contact Material - Plating [custom]	Internal Switch(s)	Actual Diameter [diameter]	Actual Diameter [diameter]	Mounting Type	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Termination
CUI Devices SJ1-42535RS-SMT-TR	Unshielded	Stereo	Board Guide	5	4	Polyamide (PA6T) Nylon 6T	300 mA	Female	Black	16 V	Silver	Single Switch	2.6 mm	0.102 in	Surface Mount Right Angle	0.094 in	2.5 mm	3 /32"	-25 °C	85 °C	Phone Jack	Brass Copper Alloy	Solder
CUI Devices SJ1-42516	Unshielded	Stereo	Board Guide	6	4		300 mA	Female	Black	16 V	Gold	Two Switches	2.6 mm	0.102 in	Through Hole Right Angle	0.094 in	2.5 mm	3 /32"	-25 °C	85 °C	Phone Jack	Phosphor Bronze	Solder
CUI Devices SJ1-42514-SMT-TR	Unshielded	Stereo	Board Guide	4	4	Polyamide (PA6T) Nylon 6T	300 mA	Female	Black	16 V	Gold		2.6 mm	0.102 in	Surface Mount Right Angle	0.094 in	2.5 mm	3 /32"	-25 °C	85 °C	Phone Jack	Phosphor Bronze	Solder
CUI Devices SJ1-42515RS-SMT-TR	Unshielded	Stereo	Board Guide	5	4	Polyamide (PA6T) Nylon 6T	300 mA	Female	Black	16 V	Gold	Single Switch	2.6 mm	0.102 in	Surface Mount Right Angle	0.094 in	2.5 mm	3 /32"	-25 °C	85 °C	Phone Jack	Phosphor Bronze	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
