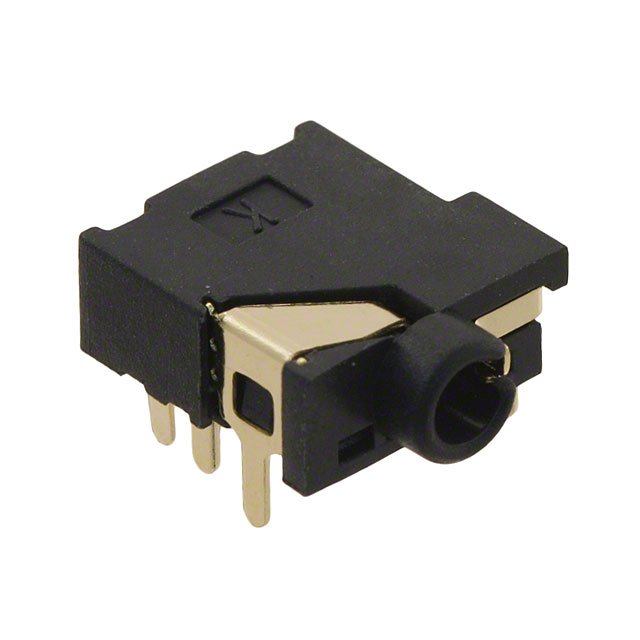

SJ1-42516

Obsolete

CUI Devices

CONN JACK 4COND 2.5MM R/A

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN JACK 4COND 2.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SJ1-42516

Actual Diameter [diameter]	2.6 mm
Actual Diameter [diameter]	0.102 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Phosphor Bronze
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	300 mA
Features	Board Guide
Gender	Female
Industry Recognized Mating Diameter	0.094 in
Industry Recognized Mating Diameter	2.5 mm
Industry Recognized Mating Diameter	3 /32"
Internal Switch(s)	Two Switches
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	4
Number of Positions/Contacts [custom]	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Voltage - Rated	16 V

Part	Shielding	Signal Lines	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Current Rating (Amps)	Gender	Body Color	Voltage - Rated	Contact Material - Plating [custom]	Internal Switch(s)	Actual Diameter [diameter]	Actual Diameter [diameter]	Mounting Type	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Termination
CUI Devices SJ1-42535RS-SMT-TR	Unshielded	Stereo	Board Guide	5	4	Polyamide (PA6T) Nylon 6T	300 mA	Female	Black	16 V	Silver	Single Switch	2.6 mm	0.102 in	Surface Mount Right Angle	0.094 in	2.5 mm	3 /32"	-25 °C	85 °C	Phone Jack	Brass Copper Alloy	Solder
CUI Devices SJ1-42516	Unshielded	Stereo	Board Guide	6	4		300 mA	Female	Black	16 V	Gold	Two Switches	2.6 mm	0.102 in	Through Hole Right Angle	0.094 in	2.5 mm	3 /32"	-25 °C	85 °C	Phone Jack	Phosphor Bronze	Solder
CUI Devices SJ1-42514-SMT-TR	Unshielded	Stereo	Board Guide	4	4	Polyamide (PA6T) Nylon 6T	300 mA	Female	Black	16 V	Gold		2.6 mm	0.102 in	Surface Mount Right Angle	0.094 in	2.5 mm	3 /32"	-25 °C	85 °C	Phone Jack	Phosphor Bronze	Solder
CUI Devices SJ1-42515RS-SMT-TR	Unshielded	Stereo	Board Guide	5	4	Polyamide (PA6T) Nylon 6T	300 mA	Female	Black	16 V	Gold	Single Switch	2.6 mm	0.102 in	Surface Mount Right Angle	0.094 in	2.5 mm	3 /32"	-25 °C	85 °C	Phone Jack	Phosphor Bronze	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
