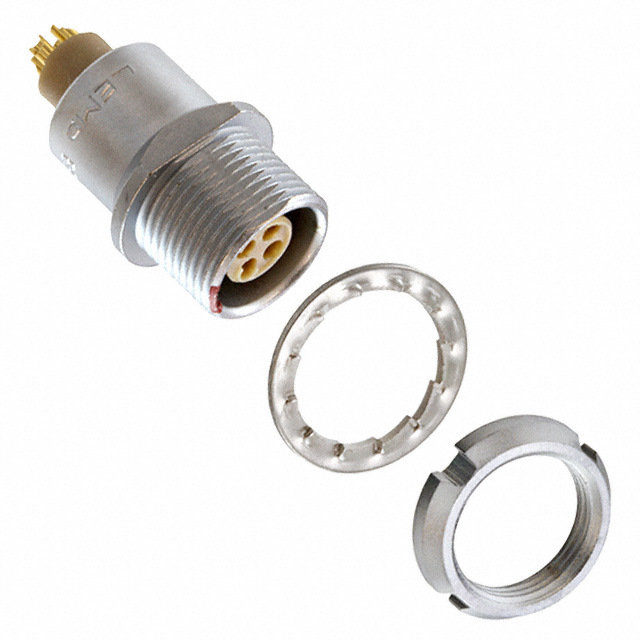

EEG.0B.304.CLL

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUnipole, Multipole Catalog Datasheet

EEG.0B.304.CLL

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsUnipole, Multipole Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EEG.0B.304.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

EEG.0B Series

Part	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Fastening Type	Material Flammability Rating	Insert Material	Contact Material	Current Rating (Amps)	Shell Material	Shell Finish	Ingress Protection	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Primary Material	Orientation	Mounting Feature	Connector Type	Number of Positions	Mounting Type	Termination
LEMO EEG.0B.305.CLL	305	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	6.5 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets
LEMO EEG.0B.303.CLL	303	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	8 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets
LEMO EEG.0B.307.CLV	307	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	2.5 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	7	Panel Mount Right Angle Through Hole	Solder
LEMO EEG.0B.304.CLN	304	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	7 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	4	Panel Mount Through Hole	Solder
LEMO EEG.0B.307.CLL	307	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	2.5 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	7
LEMO EEG.0B.303.CYM	303	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	8 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets			Crimp
LEMO EEG.0B.304.CLL	304	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	7 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	4
LEMO EEG.0B.307.KLV	307	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	2.5 A	Brass		IP50	Gold	59 Áin	1.5 Ám	Black	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	7	Panel Mount Right Angle Through Hole	Solder
LEMO EEG.0B.305.CLV	305	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	6 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets		Panel Mount Right Angle Through Hole	Solder
LEMO EEG.0B.306.CLN	306	-55 °C	250 °C	Shielded	Push-Pull	UL94 V-0	Polyetheretherketone (PEEK)	Bronze	2.5 A	Brass	Chrome	IP50	Gold	59 Áin	1.5 Ám	Silver	Metal	G	Bulkhead - Front Side Nut	Receptacle Female Sockets	6	Panel Mount Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.22
		1	$ 21.48
		10	$ 22.09
		10	$ 20.73
		25	$ 21.13
		25	$ 19.37
		50	$ 20.45
		50	$ 18.18
		100	$ 19.77
		100	$ 17.12
		250	$ 18.68
		500	$ 18.13
LCSC	Piece	1	$ 19.60
		200	$ 7.82
		500	$ 7.56
		1000	$ 7.43

Description

General part information

EEG.0B Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Unipole, Multipole Catalog

Datasheet
